ASM Siemens 03070911-03 X2x8 Feeder Toothed Wheel for SIPLACE

ASM Siemens 03070911-03 X2x8 Feeder Toothed Wheel for SIPLACE

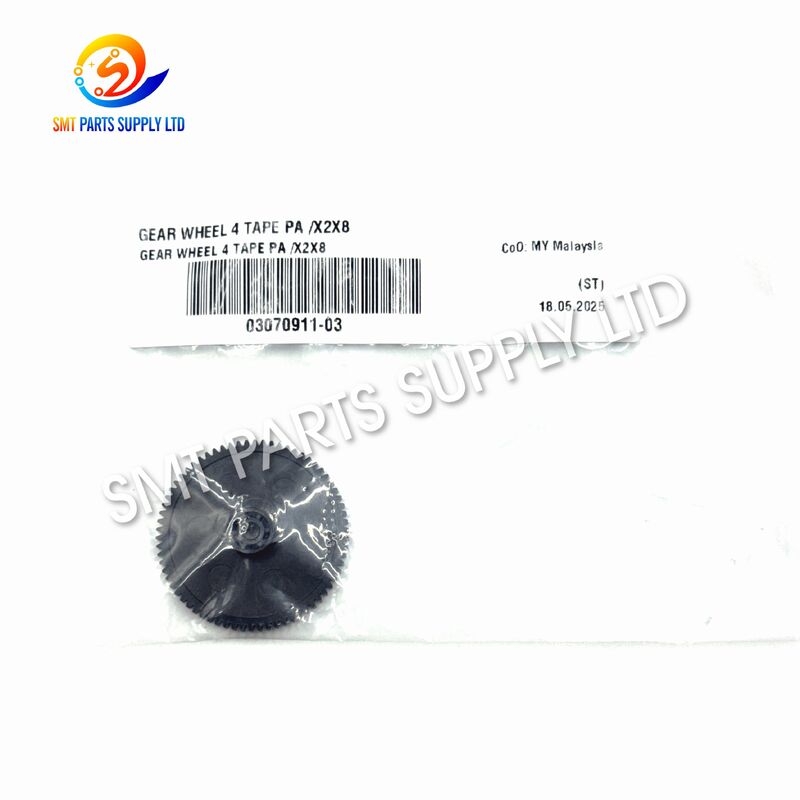

The ASM Siemens 03070911-03 X2x8 Tape Gear Wheel is an internal mechanical component used in compatible SIPLACE X2x8 SMT feeders. Identified as a tape-mechanism gear wheel, this part operates within the feeder transmission system to support controlled mechanical movement during repeated tape-feeding cycles.

SMT feeders operate continuously at high cycle rates, making small transmission components important to overall feeder stability. Long-term use, contamination, incorrect assembly, physical impact, or mechanical wear can affect gear engagement and movement consistency. A worn or damaged gear wheel may contribute to irregular transmission, increased mechanical play, abnormal feeder movement, or unreliable tape advancement.

When inspection confirms that the original gear wheel is defective, replacing it with the correct 03070911-03 component helps restore the intended feeder mechanism. It is suitable for SMT factories, feeder repair centers, maintenance departments, refurbishment operations, and spare-parts distributors supporting ASM Siemens SIPLACE equipment.

Key Product Information

Cause – Why the Feeder Gear Wheel May Require Replacement

The gear wheel works repeatedly whenever the feeder performs its tape-feeding sequence. Over time, mechanical contact and continuous cycling may affect its operating condition.

Common reasons for inspection or replacement include:

These conditions do not automatically mean that 03070911-03 is the only defective component. Related gears, shafts, rocker mechanisms, tape channels, and other feeder parts should also be inspected before completing the repair.

Solution – Restore Reliable Mechanical Transmission

When the existing gear wheel has confirmed wear, tooth damage, deformation, or abnormal clearance, replacing it with the corresponding 03070911-03 X2x8 Tape Gear Wheel provides a practical feeder maintenance solution.

Correct replacement can help:

• Restore stable mechanical transmission.
• Support repeatable feeder indexing movement.
• Reduce irregular movement caused by worn gear teeth.
• Improve engagement between related transmission components.
• Support smoother feeder operation after repair.
• Extend the useful service life of the feeder.
• Reduce repeated adjustment of damaged transmission parts.

For factories operating multiple X2x8 feeders, keeping commonly used mechanical replacement parts in stock can also reduce maintenance turnaround time.

Specifications

Main Product Advantages

1. Dedicated X2x8 Feeder Application

The 03070911-03 gear wheel is identified for the X2x8 feeder mechanism, allowing maintenance personnel to source parts according to the exact part number rather than appearance alone.

2. Supports Stable Transmission

The toothed-wheel structure works within the feeder's mechanical transmission system and helps transfer movement consistently during repeated feeder cycles.

3. Suitable for Targeted Repair

When a feeder transmission problem is traced to this gear wheel, replacing the individual component can be more practical than replacing a complete feeder assembly.

4. Useful for Feeder Refurbishment

The part is suitable for professional feeder rebuilding and refurbishment when aging mechanical components are replaced as part of a complete maintenance program.

5. Convenient Spare-Part Inventory

Factories using multiple SIPLACE feeders can stock 03070911-03 for planned maintenance and unexpected feeder repairs.

6. Clear Part-Number Identification

Using the exact part number reduces purchasing mistakes between visually similar gears used in different positions of the X2x8 feeder mechanism.

Application

The ASM Siemens 03070911-03 X2x8 Feeder Tape Gear Wheel can be used in several SMT maintenance environments.

Typical end-use industries include:

• Consumer electronics.
• Automotive electronics.
• Industrial control systems.
• Communication equipment.
• Power electronics.
• LED manufacturing.
• Medical electronics.
• PCB assembly services.

How It Works

The 03070911-03 gear wheel works as part of the X2x8 feeder's internal mechanical transmission arrangement.

During each feeding cycle, controlled movement must be transferred between related feeder components so that the tape-feeding mechanism can operate repeatedly and accurately.

1. Feeding Cycle Starts

The feeder receives the required indexing command during SMT placement operation.

2. Drive Mechanism Moves

The feeder's internal transmission system begins its programmed mechanical movement.

3. Gear Wheel Transfers Motion

The toothed wheel engages with its related transmission components and transfers rotary mechanical movement within the tape mechanism.

4. Feeding Mechanism Advances

The connected mechanism continues the required indexing sequence.

5. Component Is Prepared

The carrier-tape system positions the next component for the machine's pickup cycle.

6. Mechanism Repeats

The transmission system returns or continues into the next feeder cycle.

Because this process repeats continuously, gear condition can influence the consistency of the entire feeder mechanism.

Common Signs That the Gear Mechanism Should Be Inspected

Maintenance teams should inspect the transmission section if the feeder shows:

• Irregular mechanical movement.
• Abnormal clicking or transmission noise.
• Excessive gear clearance.
• Visible gear-tooth wear.
• Damaged or missing tooth sections.
• Intermittent tape-feed movement.
• Increased resistance during manual inspection.
• Repeated feeder interruptions.
• Unstable operation after long-term production.
• Mechanical problems after feeder impact.

Other feeder components may create similar symptoms, so complete mechanical diagnosis is recommended before replacement.

How To Choose the Correct Gear Wheel

Different X2x8 feeder mechanisms contain several gears. Similar appearance does not guarantee interchangeability.

Step 1 – Confirm the Exact Part Number

Check that your required part is:

03070911-03

The exact part number should be the primary identification reference.

Step 2 – Confirm X2x8 Feeder Application

Verify the feeder type and identification label before ordering.

Step 3 – Compare the Original Component

Check the existing wheel for:

• Overall profile.
• Tooth configuration.
• Installation position.
• Shaft interface.
• Related transmission components.
• Part markings when available.

Step 4 – Check Related Parts

If the original gear has significant wear, inspect neighboring gears and transmission components as well. Installing a new gear against a severely damaged mating component may not solve the underlying mechanical problem.

Step 5 – Provide Photos When Necessary

For uncertain configurations, provide photos of:

• Feeder identification label.
• Complete feeder.
• Original gear wheel.
• Installation location.
• Related transmission mechanism.

This helps reduce incorrect part selection.

Selection Checklist

Maintenance Recommendations

For stable feeder performance:

• Keep the internal feeder mechanism clean.
• Remove tape fragments and production debris regularly.
• Inspect transmission gears during scheduled maintenance.
• Avoid forcing gears when movement is blocked.
• Check related gears when one component shows severe wear.
• Inspect the feeder after accidental dropping or impact.
• Replace damaged gears instead of repeatedly adjusting them.
• Confirm free mechanical movement after installation.
• Test feeder indexing before returning it to production.
• Store replacement parts in clean protective packaging.

Preventive maintenance helps identify transmission wear before it develops into repeated production interruptions.

FAQ

Q1: What is ASM Siemens 03070911-03?

The 03070911-03 is a tape-mechanism gear wheel for compatible ASM Siemens SIPLACE X2x8 feeders. It operates within the feeder's mechanical transmission system and is used for repair, maintenance, and refurbishment.

Q2: Is 03070911-03 the same as a toothed wheel?

Yes. In spare-parts terminology, it may be described as a gear wheel or toothed wheel. For ordering, the exact 03070911-03 part number should always be used as the primary reference.

Q3: When should the feeder gear wheel be replaced?

Replacement should be considered when inspection finds worn or damaged teeth, abnormal clearance, deformation, irregular engagement, or other mechanical damage affecting transmission performance.

Q4: How can I confirm compatibility with my X2x8 feeder?

Confirm the feeder model and original part number first. If identification is unclear, provide clear photos of the feeder label, existing gear, and installation position for further checking.

Q5: What information is needed for a quotation?

Please provide part number 03070911-03, required quantity, feeder type, required condition, and destination country. Photos are recommended when compatibility confirmation is required.

Contact Us

Looking for ASM Siemens 03070911-03 X2x8 Tape Gear Wheels for feeder repair or maintenance?

Send us your:

• Part number: 03070911-03
• Required quantity
• Feeder model
• Required condition
• Destination country

For feeder repair projects, you may also send your complete spare-parts list for combined quotation.

If compatibility is uncertain, provide clear photos of the original component and feeder identification label for checking before ordering.

Send your inquiry today for price, availability, and delivery information.
