ASM Siemens 03078714S02 X2X8 Tape Channel Assembly for SIPLACE Feeder

ASM Siemens 03078714S02 X2X8 Tape Channel Assembly for SIPLACE Feeder

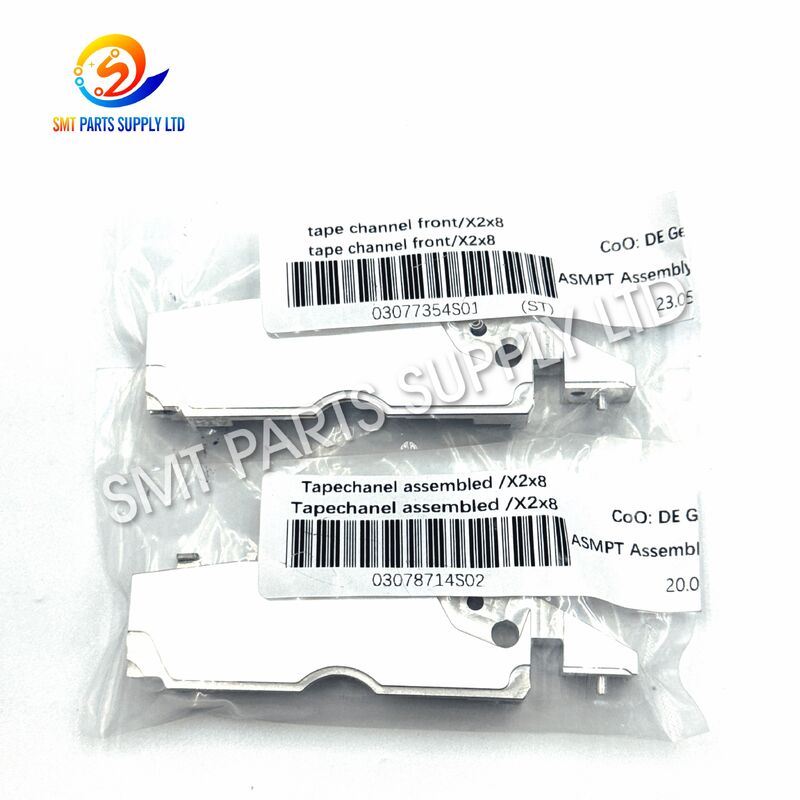

The ASM Siemens 03078714S02 X2X8 Tape Channel Assembly is a precision feeder component used in compatible SIPLACE X2X8 tape feeder systems. Its primary function is to provide a stable and correctly aligned path for component carrier tape as it travels through the feeder toward the component pickup area.

Consistent tape guidance is important in high-speed SMT production. When a tape channel becomes worn, contaminated, bent, or mechanically damaged, carrier tape may no longer advance smoothly. This can lead to irregular feeding, tape deviation, unstable component presentation, or increased feeder alarms.

Replacing the affected channel assembly with the correct 03078714S02 part helps restore the feeder's mechanical guidance path. It is suitable for feeder repair workshops, SMT production factories, maintenance departments, and spare-parts distributors requiring a clearly identified replacement for ASM Siemens SIPLACE feeder equipment.

Key Product Information

Cause – Why Tape Channel Replacement May Be Required

The tape channel operates continuously whenever the feeder is running. Long production hours, frequent reel changes, contamination, or accidental impact may gradually influence its condition.

Typical feeder problems associated with an abnormal tape path may include:

A feeder showing repeated tape-guidance problems should be inspected carefully before replacement. The tape channel should be checked together with nearby feeding and pickup mechanisms to identify the actual source of the problem.

Solution – Restore Stable Carrier Tape Guidance

Using the correct ASM Siemens 03078714S02 Tape Channel Assembly provides a practical solution when the existing channel has been confirmed as worn or damaged.

The assembly helps provide:

• Stable guidance of component carrier tape.
• Controlled tape movement through the feeder.
• More consistent alignment toward the pickup position.
• Reduced risk of tape skew caused by damaged guidance components.
• Reliable mechanical support during feeder indexing.
• Convenient replacement during scheduled feeder maintenance.

For factories operating multiple SIPLACE feeders, keeping critical mechanical feeder parts in maintenance stock can also reduce repair delays when a production feeder requires service.

Specifications

Product Advantages

1. Correct X2X8 Feeder Application

The assembly is identified by part number 03078714S02 for X2X8 feeder applications, making part identification easier during maintenance and procurement.

2. Stable Tape Guidance

It supports controlled carrier-tape movement through the feeder and helps maintain a predictable tape path during repeated indexing cycles.

3. Maintenance-Friendly Replacement

The complete assembly format is convenient for feeder repair when the original tape channel has become worn, damaged, or unsuitable for continued production.

4. Supports Consistent Component Presentation

Correct tape guidance contributes to stable component positioning before pickup, which is particularly important during continuous SMT placement operations.

5. Suitable for Preventive Maintenance

The product can be prepared as a maintenance spare for factories operating ASM Siemens SIPLACE feeder systems, reducing dependence on emergency sourcing.

6. Clear Part-Number Identification

Using 03078714S02 when requesting a quotation helps purchasing teams and engineers reduce errors caused by similar-looking feeder components.

Application

The 03078714S02 X2X8 Tape Channel Assembly is suitable for several SMT maintenance scenarios.

It can be used in electronics manufacturing environments producing consumer electronics, industrial controls, automotive electronics, communication products, power modules, LED products, and other PCB assemblies.

How It Works

During feeder operation, component carrier tape must travel along a defined mechanical path before reaching the pickup area.

The tape channel provides physical guidance for this movement.

Typical operating sequence:

1. Tape Loading
Carrier tape is installed into the feeder according to the feeder loading procedure.

2. Tape Guidance
The tape channel keeps the carrier tape traveling along the intended path.

3. Tape Advancement
The feeder indexing mechanism advances the tape one pitch at a time according to the required component package.

4. Component Presentation
The component pocket is moved toward the designated pickup position.

5. Placement Cycle
The placement machine removes the component while the feeder prepares the next pocket.

A correctly functioning tape channel therefore supports repeatable tape transport rather than directly driving the tape itself.

When Should You Inspect the Tape Channel?

Consider inspecting the feeder when operators notice:

• Carrier tape repeatedly moving sideways.
• Tape becoming difficult to load.
• Unusual resistance during tape advancement.
• Visible wear on the tape-guidance surface.
• Tape scratches or abnormal edge damage.
• Frequent feeder-related interruptions.
• Inconsistent component presentation.
• Physical damage after feeder handling or impact.

Because similar symptoms can also originate from other feeder components, the complete feeding mechanism should be inspected before determining which part requires replacement.

How To Choose the Correct Part

Correct identification is essential because SIPLACE feeders contain multiple assemblies with similar mechanical appearances.

Step 1 – Confirm the Part Number

Check that the required number is:

03078714S02

Avoid selecting a replacement only according to appearance.

Step 2 – Confirm Feeder Configuration

Verify that your feeder corresponds to the X2X8 application.

Step 3 – Check the Existing Assembly

Compare the removed component with the replacement in terms of:

• Mounting position
• Mechanical shape
• Connection points
• Channel configuration
• Feeder model

Step 4 – Provide Photos When Necessary

If the feeder label or part number is unclear, send clear photos of:

• Feeder identification label
• Complete feeder
• Existing tape channel
• Part-number marking
• Installation position

Step 5 – Confirm Before Ordering

For repair projects involving multiple feeder versions, confirm the machine and feeder information before placing a bulk order.

Selection Checklist

Maintenance Recommendations

To help maintain reliable feeder performance:

• Keep the tape path clean and free from adhesive residue.
• Inspect frequently used feeders during scheduled maintenance.
• Avoid using sharp tools on precision tape-guidance areas.
• Do not force carrier tape through a blocked channel.
• Inspect the feeder after accidental dropping or impact.
• Replace visibly damaged components instead of repeatedly adjusting them.
• Test tape advancement after installation before returning the feeder to production.
• Store replacement assemblies in clean protective packaging.

Routine inspection can help identify mechanical wear before it develops into repeated production interruptions.

FAQ

Q1: What is ASM Siemens 03078714S02 used for?

The 03078714S02 is a tape channel assembly used in compatible SIPLACE X2X8 feeders. It guides carrier tape through the feeder and supports stable tape movement toward the component pickup position.

Q2: Can this part solve feeder tape deviation problems?

If tape deviation is caused by a worn, bent, contaminated, or damaged tape channel, replacement may improve tape guidance. However, other feeder mechanisms should also be inspected before determining the final repair solution.

Q3: How can I confirm whether 03078714S02 fits my feeder?

Check the existing part number and feeder identification first. Providing the complete feeder model, feeder label, and clear photos is recommended when compatibility cannot be confirmed directly.

Q4: Is this part suitable for feeder refurbishment?

Yes. The tape channel assembly can be used during repair, preventive maintenance, or refurbishment of compatible ASM Siemens SIPLACE X2X8 feeders when the original assembly requires replacement.

Q5: What information should I provide for a quotation?

Please provide part number 03078714S02, required quantity, feeder model, required condition, and destination country. Photos of the existing part are also useful when additional compatibility confirmation is needed.

Contact Us

Looking for ASM Siemens 03078714S02 X2X8 Tape Channel Assemblies for feeder repair or production-line maintenance?

Send us your part number, feeder model, required quantity, and destination country for a fast quotation.

We can support individual replacement requirements, feeder maintenance projects, and batch spare-parts purchasing. If you are uncertain about compatibility, provide feeder-label and existing-part photos for checking before ordering.

Request your quotation today for ASM Siemens SIPLACE feeder spare parts.
