ASM Siemens 03056962S01 X2x8 Feeder Spacer for SIPLACE X Series

ASM Siemens 03056962S01 X2x8 Feeder Spacer for SIPLACE X Series

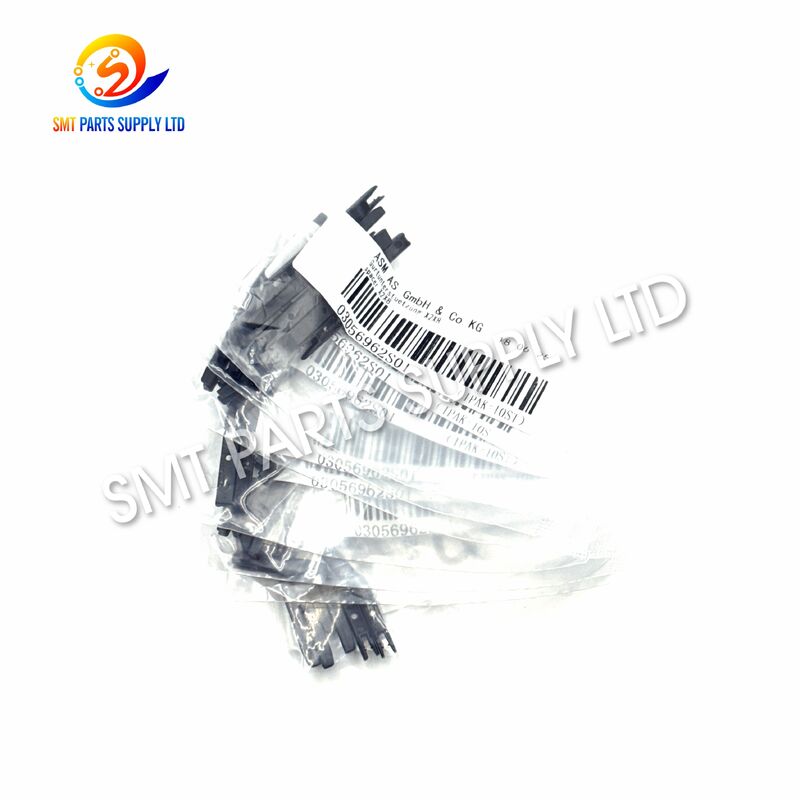

The ASM Siemens 03056962S01 X2x8 Feeder Spacer is a precision mechanical component used in compatible SIPLACE X-Series feeder assemblies. Its main purpose is to maintain the required spacing, positional relationship, and mechanical alignment between neighboring feeder components.

Although a spacer does not actively drive the carrier tape, it plays an important supporting role within the feeder structure. SMT feeders contain many closely arranged gears, rollers, shafts, channels, covers, and positioning components. These parts must remain correctly separated and aligned so the feeder mechanism can operate smoothly and repeatedly.

When a spacer becomes worn, damaged, deformed, missing, or incorrectly installed, the relative position of connected feeder parts may change. This can lead to increased mechanical friction, unstable movement, misalignment, or premature wear of surrounding components.

The 03056962S01 Spacer X2x8 is therefore suitable for feeder repair, preventive maintenance, refurbishment, and replacement of damaged mechanical spacing components.

Cause – Why a Feeder Spacer May Need Replacement

Feeder spacers are normally subject to less direct driving load than gears or rollers, but their position is important for overall mechanical accuracy.

During repeated feeder operation and maintenance, several conditions may affect spacer performance.

A spacer that appears visually simple should not automatically be replaced by a washer or generic metal piece.

The correct feeder spacer is selected according to its part number, shape, thickness, mounting position, and feeder configuration.

Solution – Maintain Correct Feeder Spacing and Alignment

Using the correct ASM Siemens 03056962S01 feeder spacer helps restore the intended positional relationship between compatible X2x8 feeder components.

The spacer functions as a mechanical separator and locating element within the feeder assembly.

Key Benefits

Proper spacing is especially important in compact feeder mechanisms because very small dimensional changes can influence gear engagement, roller movement, tape-channel position, or mechanical clearance.

Specifications

Important: Exact installation position and compatibility should be confirmed using the original part number, feeder configuration, and removed component before replacement.

Application

The 03056962S01 Spacer X2x8 is used in compatible ASM Siemens SIPLACE X-Series feeder mechanisms.

Its function is associated with maintaining proper mechanical separation and positioning between related parts.

Typical applications include:

For SMT factories operating large quantities of feeders, keeping small mechanical spare parts such as spacers available can reduce repair delays caused by missing or damaged components.

How It Works

The function of a feeder spacer is based on maintaining a controlled physical distance between related mechanical parts.

Step 1 – Spacer Positioning

The 03056962S01 spacer is installed at its designated position within the compatible X2x8 feeder assembly.

Step 2 – Controlled Separation

The spacer establishes the required distance between neighboring feeder parts.

This prevents components from being installed too close together or shifting from their designed position.

Step 3 – Mechanical Alignment

Correct spacing supports proper alignment between related gears, shafts, guides, covers, channels, rollers, or structural components.

Step 4 – Assembly Tightening

Once the related components are positioned correctly, the feeder assembly can be secured according to the maintenance procedure.

Step 5 – Stable Operation

With correct spacing restored, related moving components can operate with the intended clearance and mechanical relationship.

The spacer therefore acts as a passive but important precision positioning component.

Why Spacer Accuracy Matters

An SMT feeder is a compact precision mechanism. Many components operate close to each other, and their relative position influences feeder reliability.

An incorrect spacer may create several problems:

• Excessive clearance
• Insufficient clearance
• Misaligned mechanical parts
• Increased rubbing or friction
• Abnormal component movement
• Poor gear engagement
• Premature wear of nearby parts
• Difficult feeder reassembly

For this reason, selecting a spacer only by approximate shape or appearance is not recommended.

The original 03056962S01 part number should be used as the primary identification reference.

How To Choose the Correct Feeder Spacer

Before ordering, verify the key identification information.

1. Confirm Part Number 03056962S01

The part number is the most important purchasing reference.

Different feeder spacers may have similar appearances but different dimensions or installation positions.

2. Confirm the X2x8 Feeder Configuration

Make sure the feeder requiring repair corresponds to the compatible X2x8 configuration.

3. Compare the Removed Spacer

Before installation, compare the replacement spacer with the original component.

Check:

• Overall shape
• Mounting position
• Contact surfaces
• Relative thickness
• Mechanical interface

4. Inspect Adjacent Components

If the spacer is damaged, inspect nearby mechanical components for abnormal wear or deformation.

Related parts may include:

• Shafts
• Gear wheels
• Tape-channel components
• Rollers
• Brackets
• Guides
• Covers
• Fastening components

Replacing only the spacer may not completely solve the problem if another component has already been damaged.

5. Provide Feeder Photos When Needed

If compatibility is uncertain, provide the feeder label, part number, damaged spacer, and installation position when requesting a quotation.

This helps improve identification accuracy.

Maintenance Recommendations

During feeder repair, small mechanical parts should be handled carefully.

Before installing the 03056962S01 feeder spacer:

• Clean the installation area.
• Remove tape debris and contamination.
• Check the spacer seating surface.
• Inspect related parts for wear.
• Confirm the correct orientation.
• Avoid forcing the component into position.
• Verify normal mechanical clearance.
• Reassemble according to feeder maintenance procedures.

After installation, manually check the related feeder mechanism for smooth movement before returning the feeder to normal SMT production.

If abnormal resistance remains, inspect the complete mechanical assembly rather than repeatedly operating the feeder.

FAQ

1. What is ASM Siemens 03056962S01?

The 03056962S01 is an X2x8 feeder spacer used in compatible ASM Siemens SIPLACE X-Series feeder assemblies. It helps maintain the required spacing and mechanical positioning between related feeder components.

2. What is the main function of this feeder spacer?

Its main function is to maintain controlled mechanical separation and positional accuracy between neighboring feeder components, helping preserve the intended clearance and alignment inside the feeder mechanism.

3. Is 03056962S01 used for SIPLACE X-Series feeders?

Yes, the 03056962S01 is identified as an X2x8 spacer for compatible SIPLACE X feeder applications. Buyers should confirm the original feeder configuration and part number before installation.

4. Can a standard washer replace the 03056962S01 spacer?

A generic washer is not recommended as a direct replacement without dimensional verification. Feeder spacing may depend on precise thickness, shape, mounting position, and mechanical interface. Using the correct part number helps avoid assembly problems.

5. What should I provide when requesting a quotation?

Please send part number 03056962S01, feeder model, required quantity, delivery destination, and photos of the original component if available. A complete ASM Siemens feeder spare-parts list can also be quoted together.

Contact Us

Need ASM Siemens 03056962S01 X2x8 feeder spacers for SIPLACE X-Series feeder repair or maintenance?

Send us the part number, feeder model, required quantity, and delivery destination for price and availability confirmation. For feeder refurbishment projects, you can also provide your complete spare-parts list for a consolidated quotation.
