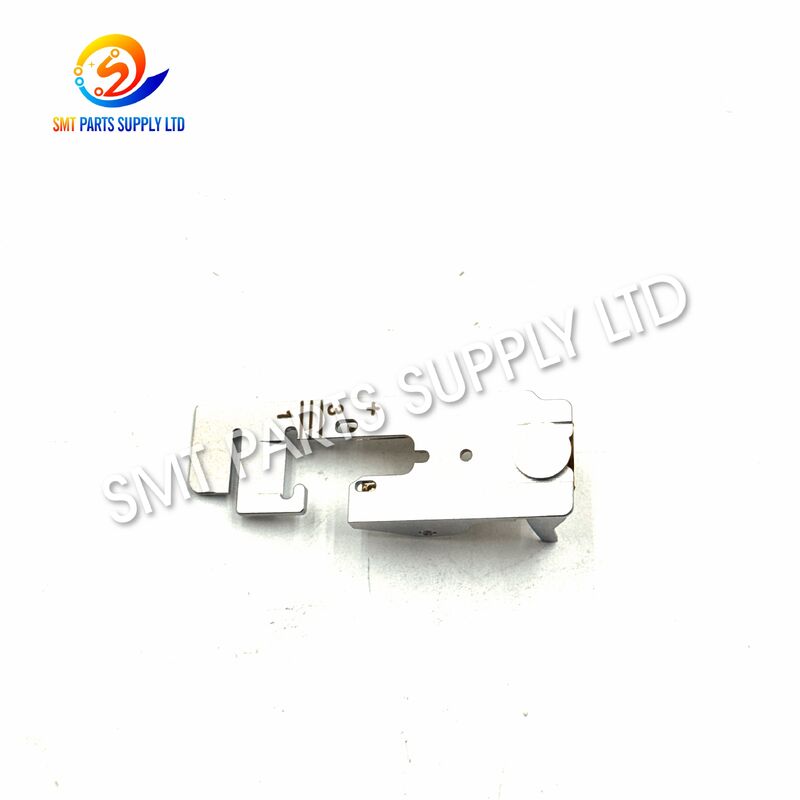

ASMPT 03083995-02 X12N Feeder Tape Press Cover for SIPLACE

ASMPT 03083995-02 X12N Feeder Tape Press Cover for SIPLACE

The ASMPT 03083995-02 X12N Feeder Tape Press Cover is a precision feeder spare part used in the tape handling area of compatible SIPLACE X12N feeder assemblies. Its primary role is to help maintain controlled positioning of the carrier tape around the component feeding and pickup section, allowing the feeder mechanism to present components consistently to the placement machine.

During continuous SMT operation, feeder mechanical parts are exposed to repeated movement, tape contact, loading operations, cleaning, and maintenance. Wear, deformation, contamination, or mechanical damage in the tape press area may influence tape movement and component presentation. Replacing the affected part can help restore normal feeder operation without replacing the complete feeder.

Part number 03083995-02 is suitable for feeder repair workshops, SMT production plants, maintenance departments, contract electronics manufacturers, and spare-parts distributors requiring replacement components for X12N feeder servicing.

Cause - Why the Tape Press Cover May Need Replacement

A tape feeder operates continuously during electronics production. Although the tape press cover is a mechanical component, its condition can directly influence how smoothly the carrier tape moves through the feeder.

Common reasons for inspection or replacement include:

Operators may notice abnormal tape movement, inconsistent component presentation, unusual resistance, or visible mechanical damage during feeder inspection.

Instead of replacing the entire feeder assembly, technicians can inspect the individual feeder components and replace the damaged mechanical parts when appropriate.

Solution - Restore Stable X12N Feeder Operation

The 03083995-02 Tape Press Cover provides a practical replacement solution for compatible X12N feeder maintenance.

After correct installation, the part helps maintain the intended relationship between the carrier tape, feeder tape path, and component pickup area. Stable mechanical positioning is important because SMT placement equipment depends on components being presented repeatedly at the expected pickup location.

Replacing a worn or damaged press cover may help:

• Restore controlled carrier tape movement.
• Maintain stable component presentation.
• Reduce mechanical interference around the feeding path.
• Support reliable feeder operation.
• Extend the usable life of an existing feeder.
• Reduce unnecessary complete feeder replacement.
• Improve preventive maintenance efficiency.
• Keep spare feeders available for production changeovers.

For maintenance departments managing many feeders, keeping critical feeder mechanical parts in stock can also shorten repair turnaround time.

Specifications

Important: Exact feeder version and part-number suffix should be confirmed before ordering because feeder assemblies may use different revisions.

Key Product Benefits

Stable Tape Handling

The component helps keep the carrier tape properly controlled within the feeder's working area. Correct tape positioning supports predictable component presentation during automated placement.

Practical Feeder Repair

When only the tape press section is damaged or worn, replacing the related component can be more economical than replacing the complete feeder.

Suitable for Maintenance Inventory

SMT factories operating multiple placement lines often maintain frequently used feeder spare parts. Keeping replacement mechanical components available helps technicians respond more quickly when feeder problems occur.

Easy Part Identification

The reference part number 03083995-02 allows purchasing and maintenance teams to compare the replacement component with their existing feeder documentation, old part, or equipment label.

Supports Preventive Maintenance

Replacing visibly worn feeder parts before a serious feeding problem develops can help reduce unexpected interruptions during production.

Application

The ASMPT 03083995-02 Tape Press Cover is mainly intended for X12N feeder maintenance and repair in SMT production environments.

Typical applications include:

The part can be useful in electronics manufacturing industries such as consumer electronics, automotive electronics, industrial controls, communication equipment, power electronics, medical electronics, and other PCB assembly applications.

Typical Replacement Situations

1. Visible Mechanical Damage

If the existing cover is bent, cracked, excessively worn, or physically damaged, replacement should be considered after confirming the root cause.

2. Irregular Carrier Tape Movement

If tape movement becomes unstable, technicians should inspect the complete tape path, including the press cover and nearby mechanical components.

3. Feeder Refurbishment

During scheduled feeder refurbishment, worn mechanical components can be replaced together with other service parts to restore operating condition.

4. Preventive Spare Preparation

Production plants operating large numbers of feeders can keep replacement parts available to reduce maintenance waiting time.

How It Works

Tape feeders move component carrier tape forward by a controlled pitch so that each component pocket reaches the pickup area at the correct position.

The tape press cover works as part of the feeder's mechanical tape-handling structure. It helps maintain appropriate positioning and control of the carrier tape as the tape advances through the working area.

The basic process is:

1. Carrier Tape Loading

The operator installs the component reel and guides the carrier tape through the feeder.

2. Tape Positioning

The feeder's mechanical guide and press components keep the carrier tape positioned along the intended path.

3. Controlled Advancement

The feeder advances the tape according to the programmed pitch.

4. Component Presentation

Each component pocket reaches the pickup location for the placement head.

5. Continuous Feeding

The process repeats throughout production.

If a mechanical component around the tape path becomes damaged or incorrectly positioned, the tape may no longer move as intended. This is why even a relatively small feeder part can be important to overall feeder performance.

Maintenance Recommendations

Regular feeder inspection can help identify mechanical problems before they affect production.

Do not force a feeder part into position during installation. If the replacement component does not align correctly, verify the feeder model, revision, mounting position, and related parts before continuing.

How To Choose the Correct Part

Correct part identification is especially important when purchasing feeder spare parts because visually similar components may belong to different feeder versions.

Before ordering 03083995-02, please check the following information:

Check the Part Number

Confirm that the existing component or maintenance record shows 03083995-02.

Confirm the Feeder Model

Verify that the feeder is an X12N configuration compatible with this replacement part.

Check the Existing Part

Compare the shape, mounting points, mechanical structure, and installation position with the replacement component.

Confirm the Revision

Some feeder parts may have different suffixes or production revisions. The complete part number is more reliable than appearance alone.

Provide Photos When Necessary

If the identification label is unclear, send clear photographs of:

• Existing feeder.
• Old component.
• Feeder model label.
• Part-number label.
• Installation position.

This information helps reduce the risk of ordering an incorrect feeder component.

Ordering Information

For faster identification and quotation, provide the following details with your inquiry:

For multiple feeder parts, customers may also send a BOM or spare-parts list for combined checking and quotation.

Why Replace Individual Feeder Parts

Feeder systems consist of many mechanical and electronic components. In many maintenance situations, a feeder fault does not require replacement of the complete feeder.

Replacing only the affected component can provide several advantages:

• Lower maintenance cost.
• Faster feeder recovery.
• Reduced equipment waste.
• Easier spare inventory management.
• Longer service life for existing feeder assets.
• More flexible repair planning.
• Reduced dependency on complete feeder availability.

For factories with many feeders in circulation, component-level maintenance can be an efficient strategy for controlling operating costs.

FAQ

Q1. What is ASMPT 03083995-02 used for?

The 03083995-02 is a mechanical tape press cover for compatible X12N feeder applications. It works around the carrier tape handling and pickup area to help maintain stable tape positioning during component feeding.

Q2. Is 03083995-02 a complete feeder?

No. It is a feeder spare part rather than a complete X12N feeder. It is intended for maintenance, repair, refurbishment, or replacement of the corresponding mechanical component.

Q3. How can I confirm whether this part fits my feeder?

Check the complete part number, feeder model, existing component shape, mounting position, and feeder revision. Sending photos of the feeder label and original component is recommended before placing the order.

Q4. Should I replace the entire feeder if the press cover is damaged?

Not necessarily. If inspection shows that only the relevant mechanical component is damaged, replacement of the individual feeder part may restore normal operation. Other feeder mechanisms should also be inspected before installation.

Q5. Can I request other X12N feeder spare parts together?

Yes. You can provide a feeder spare-parts list, BOM, part numbers, or photos. Multiple feeder components can be checked together to simplify purchasing and maintenance preparation.

Contact Us

Need ASMPT 03083995-02 X12N Feeder Tape Press Cover or other SMT feeder replacement parts?

Send us your:

Part number + feeder model + quantity + destination country.

For uncertain feeder versions, please include clear photos of the existing part and feeder label. We can check the information before quotation and help you select the appropriate replacement part for your maintenance requirement.

Contact us today for price, availability, lead time, packing details, and combined quotation for multiple SMT feeder spare parts.
