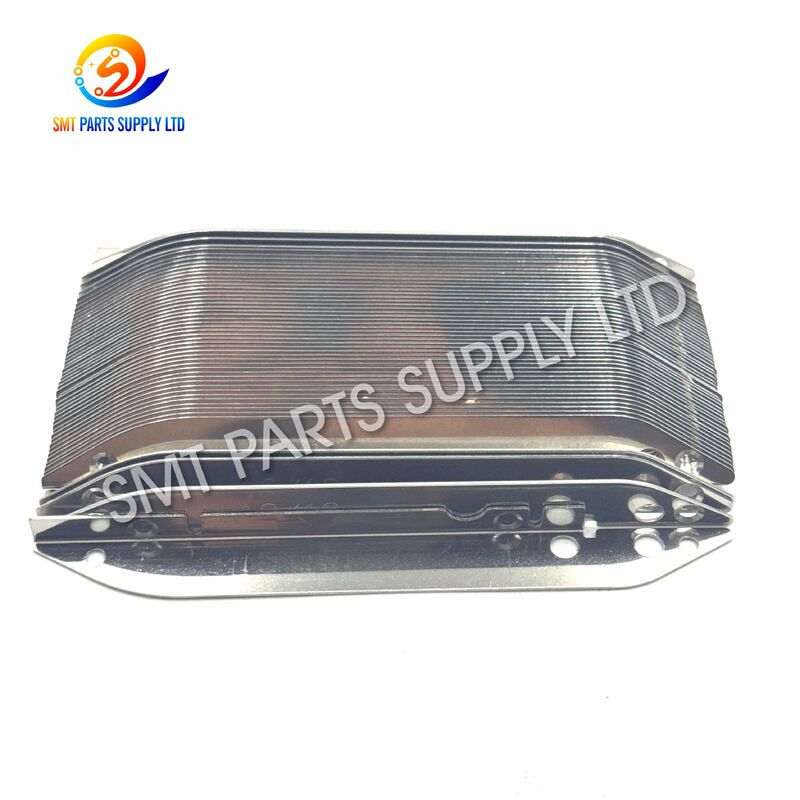

KXFA1PT9A01 GUIDE for Panasonic NPM 12/16 mm Tape Feeder

KXFA1PT9A01 GUIDE for Panasonic NPM 12/16 mm Tape Feeder

The Panasonic KXFA1PT9A01 Guide is a feeder spare part designed for compatible Panasonic NPM 12mm and 16mm tape feeder assemblies. Installed within the feeder's tape transport area, the guide helps maintain the correct movement and positioning of carrier tape as components advance toward the pickup position.

In high-speed SMT production, tape feeding stability directly affects component presentation, pickup consistency, placement efficiency, and machine utilization. A worn, bent, damaged, or incorrectly fitted guide can cause unstable tape travel, excessive friction, tape deviation, or irregular component presentation.

Replacing a damaged guide with the correct KXFA1PT9A01 feeder guide helps restore the intended tape path and supports dependable operation of the feeder. This component is suitable for feeder repair centers, SMT maintenance departments, electronics factories, and spare-parts distributors maintaining Panasonic NPM equipment.

Before ordering, customers are recommended to confirm the feeder width, feeder model, existing part number, installation position, and physical appearance.

Cause

Tape feeders operate continuously under repetitive mechanical movement. During long-term production, feeder guide components can gradually develop wear or become damaged because of contamination, incorrect tape loading, mechanical impact, improper maintenance, or extended operating hours.

Common conditions that may indicate a feeder guide should be inspected include:

When the carrier tape does not travel through the intended path, the feeder may not present components consistently at the pickup position. This can increase pickup errors and maintenance frequency.

The guide should therefore be checked whenever technicians observe abnormal carrier-tape movement around the feeder transport section.

Solution

The KXFA1PT9A01 Guide provides a practical replacement solution for compatible Panasonic NPM 12/16mm tape feeders when the original guide is worn or mechanically damaged.

The component helps maintain the carrier tape within the designed feeding path. Correct tape guidance reduces unnecessary lateral movement and allows the feeder's indexing mechanism to advance the tape more consistently.

Replacing a damaged guide can help:

• Maintain a controlled carrier-tape path.
• Reduce tape deviation during feeder indexing.
• Support stable component positioning.
• Improve consistency at the pickup area.
• Reduce unnecessary tape resistance.
• Restore feeder mechanical condition during maintenance.
• Reduce production interruptions caused by worn feeder hardware.
• Extend the useful service life of existing feeder assemblies.

For best results, the guide should be installed only after confirming that the feeder's other mechanical parts—including sprocket, tape track, cover mechanism, tension components, and related hardware—are also in suitable condition.

Specifications

Compatibility should be verified according to feeder model, existing part number, feeder configuration, and installation position before purchase.

Key Functional Features

Application

The KXFA1PT9A01 guide is mainly used in SMT tape feeder maintenance and repair applications. It is suitable for production environments where Panasonic NPM placement equipment is used with compatible 12mm or 16mm tape feeders.

Typical applications include:

SMT Production Lines

Used in electronics manufacturing lines where tape-and-reel components must be presented consistently to the placement machine.

Feeder Maintenance Departments

Suitable for replacing mechanically worn feeder components during scheduled preventive maintenance.

Feeder Repair Centers

Useful for rebuilding or servicing feeder assemblies that show abnormal tape movement or mechanical wear.

Electronics Manufacturing Services

Can be stocked as a maintenance spare for factories operating multiple NPM machines and feeder quantities.

Spare Parts Inventory

Suitable for maintenance teams that require frequently used feeder mechanical parts to reduce downtime.

Typical industries include:

How It Works

A tape feeder advances carrier tape in controlled increments so that each electronic component reaches the correct pickup position for the placement head.

During this process, the carrier tape passes through several mechanical areas inside the feeder. The KXFA1PT9A01 guide helps control the tape path through its corresponding section.

Its basic operating role can be summarized as:

Carrier Tape Entry → Tape Guidance → Controlled Indexing → Component Presentation → Pickup Position

1. Carrier Tape Loading

The operator loads the 12mm or 16mm component carrier tape into the compatible feeder according to the feeder's threading path.

2. Tape Guidance

The guide helps keep the carrier tape aligned with the feeder's mechanical travel direction.

3. Feeder Indexing

The feeder drive mechanism advances the tape according to the required pitch.

4. Stable Presentation

Correctly guided tape assists the feeder in presenting each component pocket consistently near the pickup position.

5. Component Pickup

The placement machine removes the component using its nozzle and continues the programmed mounting process.

Although the guide is a relatively small mechanical component, its condition can influence the overall stability of the tape path. For this reason, technicians should avoid operating feeders with obviously damaged guide surfaces.

Signs That the Guide May Require Replacement

Operators and maintenance technicians may consider inspecting the guide when they notice:

• Carrier tape repeatedly moving sideways.
• Increased resistance while loading tape.
• Scratching or unusual marks on carrier tape.
• Components arriving inconsistently at the pickup point.
• Visible wear on the guide surface.
• Bent or damaged guide geometry.
• Tape rubbing against surrounding feeder structures.
• Frequent feeder adjustment without a clear electrical fault.

These symptoms can also have other causes. Technicians should inspect the entire feeder mechanism before determining the final replacement component.

How To Choose

Correct feeder-part identification is important because visually similar components may be used on different feeder sizes or versions.

Before ordering KXFA1PT9A01, please check the following information.

Recommended Ordering Information

For faster quotation and compatibility checking, provide:

1. Part number: KXFA1PT9A01
2. Feeder model or feeder identification information.
3. Feeder width: 12mm or 16mm.
4. Machine series.
5. Quantity required.
6. Photo of the existing part when available.
7. Required delivery destination.

Providing these details reduces the risk of selecting a similar-looking but incompatible feeder component.

Maintenance Recommendations

Routine feeder maintenance helps improve component feeding reliability.

Do not force carrier tape through the feeder when abnormal resistance is detected. Excessive force may damage guide components or other feeder mechanisms.

Why Correct Feeder Parts Matter

SMT feeders operate repeatedly during every production cycle. Small mechanical deviations can eventually influence line efficiency.

Correct feeder maintenance can help manufacturers achieve:

• More consistent carrier-tape transport.
• Reduced unnecessary feeder stoppages.
• Better component presentation stability.
• Faster maintenance turnaround.
• Lower feeder replacement costs by repairing individual components.
• Improved utilization of existing feeder inventory.

Instead of replacing a complete feeder because of one worn mechanical part, technicians can often restore the unit by identifying and replacing the corresponding spare component.

FAQ

1. What is the main function of Panasonic KXFA1PT9A01?

KXFA1PT9A01 is a guide component used in compatible NPM 12/16mm tape feeders. Its primary function is to help control and maintain the carrier tape path during feeder operation, supporting smooth tape movement and stable component presentation.

2. Is KXFA1PT9A01 a complete tape feeder?

No. KXFA1PT9A01 is an individual feeder guide spare part, not a complete feeder assembly. It is typically used for feeder maintenance, repair, or replacement of a worn or damaged guide component.

3. Is this guide suitable for both 12mm and 16mm feeders?

It is associated with compatible 12/16mm Panasonic NPM tape feeder applications. Because feeder configurations can vary, customers should verify the original part number, feeder model, installation position, and existing component before ordering.

4. What problems can a damaged feeder guide cause?

A worn, bent, or contaminated guide may contribute to carrier-tape deviation, increased tape resistance, irregular tape movement, or inconsistent component presentation. However, similar symptoms can also be caused by other feeder parts, so full feeder inspection is recommended.

5. What information should I provide before requesting a quotation?

Please provide KXFA1PT9A01, feeder width, feeder model or identification, required quantity, destination country, and preferably a photo of the original component. This information helps confirm compatibility and allows us to prepare a more accurate quotation.

Contact Us

Need KXFA1PT9A01 feeder guides for maintenance, replacement, or spare-parts inventory?

Send us your part number, feeder model, feeder width, required quantity, and destination. Photos of the existing feeder component are also welcome for compatibility checking.

We can assist with:

• Product compatibility confirmation.
• Stock availability.
• Quantity quotations.
• Replacement feeder spare-part selection.
• Export packing information.
• Delivery options for international orders.

Contact us for current availability and quotation for KXFA1PT9A01 NPM 12/16mm tape feeder guide.
