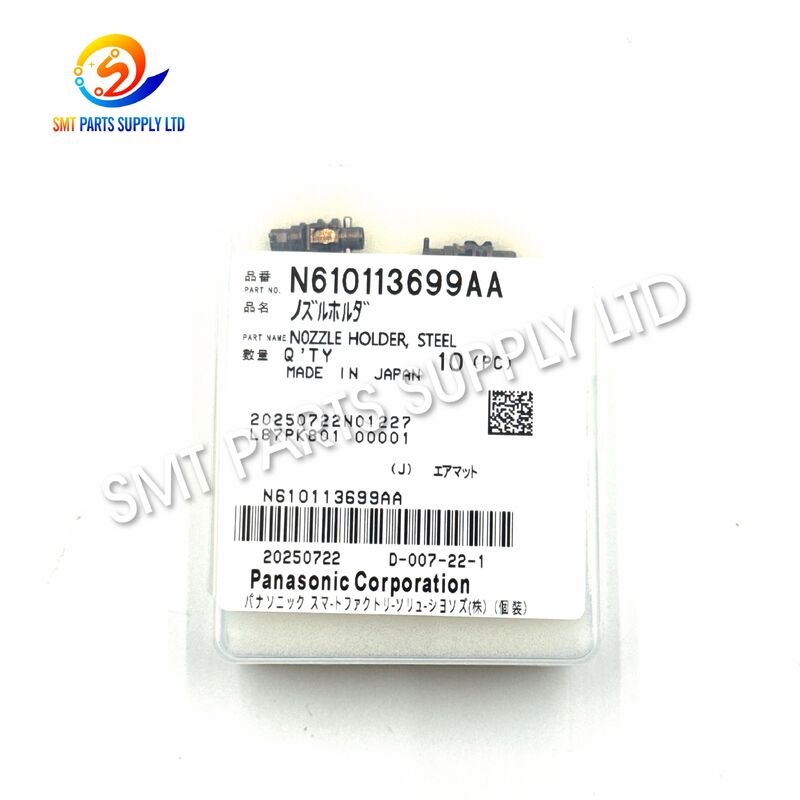

Panasonic N610113699AA Steel Nozzle Holder for NPM H16 Head

The Panasonic N610113699AA steel nozzle holder is a precision mechanical component used within compatible NPM high-speed placement head assemblies. It provides the mechanical supporting and positioning interface required for stable nozzle installation, movement, and component pickup operations. Publicly available product references commonly identify this part as an NPM H16 or 16-nozzle head holder, with additional references to NPM-D3 and selected NPM-W or NPM-W2 16-head configurations. Machine configuration must always be verified before ordering.

Manufactured from steel for mechanical strength and dimensional stability, the holder is intended for demanding SMT production environments where placement heads operate continuously at high speed. A correctly matched nozzle holder helps maintain nozzle alignment, controlled vertical motion, reliable vacuum pickup, and repeatable component placement.

The N610113699AA holder is suitable for preventive maintenance, placement-head rebuilding, damaged-part replacement, and long-term spare-parts inventory. It can be supplied to SMT factories, EMS manufacturers, equipment service companies, machine rebuilders, and international spare-parts distributors.

Before shipment, customers should provide the machine model, placement-head type, complete part number, and clear photographs of the existing component. This confirmation process reduces the risk of ordering a visually similar but mechanically different nozzle holder.

Public listings also associate N610113699AA with later suffix references such as N610113699AB or N610113699AC, while N210081891AB appears in some related holder descriptions or head-component lists. These numbers should not automatically be treated as interchangeable without technical confirmation.

The nozzle holder operates inside a high-speed mechanical system. During production, it may experience continuous vertical movement, repeated acceleration, vibration, contact pressure, and exposure to flux residue, dust, oil, or fine particles. Even when the placement machine remains operational, gradual holder deterioration can reduce pickup and placement stability.

Continuous operation may gradually wear the holder’s contact, guiding, or supporting surfaces. Small dimensional changes can affect the relationship between the nozzle, shaft, spring, and surrounding head components.

An incorrect nozzle setup, raised component, damaged feeder, warped PCB, programming error, or accidental head collision may bend or damage the holder. A part can appear normal externally while still having a minor deformation that affects movement.

Dust, solder paste particles, adhesive residue, or dried lubricant can enter the moving mechanism. Contamination increases friction and may prevent smooth holder movement.

Using unsuitable tools, excessive force, incorrect lubricants, or an improper cleaning method may damage precision surfaces. A nozzle holder should never be polished, ground, or modified without an approved technical procedure.

Similar nozzle holders may have small structural differences. Installing the wrong revision can cause poor fitting, limited stroke, unusual noise, or unstable nozzle retention.

High-volume SMT lines may run continuously for multiple shifts. Repeated motion eventually increases the possibility of fatigue, looseness, surface wear, or positional variation.

Not every pickup or placement error is caused by the nozzle holder. The nozzle, shaft, vacuum filter, O-ring, spring, sensor, solenoid valve, camera system, feeder setup, PCB support, and machine calibration should also be inspected.

Replacing a worn, deformed, contaminated, or incorrectly fitted nozzle holder can restore the correct mechanical interface between the nozzle and placement head. The objective is not simply to install a new metal component, but to recover controlled movement, secure nozzle retention, and consistent pickup height.

The recommended solution includes four stages:

Verify the full part number printed on the old holder or machine documentation. Confirm whether the required number is N610113699AA or another revision.

Examine the nozzle shaft, spring, seal, filter, clamp, vacuum path, and surrounding holder components. Installing a new holder with a worn shaft or damaged seal may not solve the original problem.

Use appropriate tools and follow the equipment maintenance procedure. Avoid side pressure, impact, forced insertion, or unapproved modification.

After installation, perform nozzle movement tests, vacuum checks, nozzle-height confirmation, pickup testing, vision recognition, and trial placement before returning the machine to full production.

Exact dimensions, tolerance, surface treatment, compatible serial ranges, and placement-head revisions are not consistently available in public documentation. Buyers should not select this product only by appearance or approximate dimensions. Final compatibility should be confirmed through the complete part number and machine information.

Some trade references describe related N610113699AB or N610113699AC versions as approximately 10 × 20 mm steel holders; however, this should be regarded as a reference rather than a guaranteed dimensional specification for every revision.

The N610113699AA nozzle holder is primarily used in SMT electronic component placement equipment. Its application is closely connected to the high-speed placement-head mechanism responsible for picking components from feeders and positioning them onto printed circuit boards.

Public catalogs and supplier references commonly connect N610113699AA to NPM 16-nozzle or H16 head applications. A separate parts catalog also associates it with NPM-W and NPM-W2 16-head nozzle-holder units.

• Consumer electronics manufacturing
• Automotive electronics assembly
• Industrial control board production
• Communication equipment manufacturing
• LED product assembly
• Medical electronics manufacturing
• Computer and server hardware production
• Power supply and inverter manufacturing
• Semiconductor packaging support lines
• EMS and contract electronics manufacturing
• SMT equipment maintenance companies
• Used SMT machine rebuilding companies
• Electronic spare-parts distributors
• Technical training and repair centers

An SMT placement head uses a nozzle to pick electronic components from tape feeders, trays, sticks, or other component supply systems. The nozzle must be held in a precise mechanical position while moving vertically, rotating, applying vacuum, and placing components.

The nozzle holder forms part of the mechanical structure that supports this process.

The compatible nozzle is installed into the head mechanism. The holder helps maintain the correct relationship between the nozzle and surrounding head components.

During pickup, the head lowers the nozzle toward the component. The holder must allow or support controlled movement without abnormal friction or looseness.

Vacuum is applied through the nozzle system. Stable mechanical positioning helps the nozzle contact the component correctly and maintain suction.

After pickup, the component may be inspected by the machine vision system. Irregular nozzle position can affect component centering, rotation recognition, or height consistency.

The head moves to the programmed PCB location and places the component. Accurate holder positioning contributes to repeatable nozzle movement and placement.

The cycle is repeated at high speed. The holder must maintain stable performance throughout thousands or millions of operating cycles.

A holder replacement should therefore be treated as part of a complete mechanical and vacuum-system inspection rather than an isolated maintenance action.

1. Confirm the machine model and head model.
2. Compare the new part number with the removed component.
3. Check the holder for rust, impact marks, scratches, or deformation.
4. Inspect the mating shaft, spring, seal, and nozzle.
5. Clean the installation area with an approved maintenance method.
6. Prepare suitable tools and a clean work surface.
7. Record the original assembly direction before disassembly.

1. Avoid touching precision surfaces unnecessarily.
2. Do not use excessive force.
3. Keep the holder straight during insertion.
4. Install related springs and seals in the correct direction.
5. Confirm free and smooth movement.
6. Tighten fasteners according to the maintenance standard.
7. Do not grind, bend, polish, or drill the holder.

1. Manually check movement where permitted.
2. Run the machine’s head diagnostic procedure.
3. Verify nozzle installation and removal.
4. Check vacuum pickup stability.
5. Confirm nozzle height and centering.
6. Run low-speed trial placement.
7. Inspect placed components for offset or damage.
8. Increase production speed gradually.
9. Monitor alarms and pickup error data.
10. Record the maintenance date and installed part number.

Choosing the correct holder requires more than matching the general product name. Different placement heads may use holders that look almost identical but differ in length, interface geometry, spring arrangement, machining details, surface treatment, or production revision.

This is the main number requested for the steel nozzle holder and is widely referenced for NPM H16 or 16-nozzle head use.

These suffix numbers appear in trade and shipment references as later or related steel holder revisions. They may represent revision updates, logistics numbering, or compatible production versions. Interchangeability must be confirmed before shipment.

This number appears in some product titles and compatible head-component lists together with N610113699AA. It should be treated as an associated or cross-referenced number until the machine documentation confirms its exact relationship.

Please provide the following information when sending an inquiry:

• Required part number: N610113699AA
• Machine model:
• Placement-head model:
• Machine serial number:
• Required condition:
• Required quantity:
• Photograph of old part:
• Destination country:
• Required delivery date:

This format allows the supplier to check compatibility, stock, price, packaging, and shipping options efficiently.

The quotation should clearly state the offered condition. Product photographs, packaging, warranty terms, and testing scope should be reviewed before purchase.

Precision SMT head components should be packaged carefully to prevent collision, moisture, dust, and surface damage during transportation.

1. Clean visual inspection.
2. Individual protective bag or small box.
3. Anti-impact cushioning material.
4. Part-number identification label.
5. Quantity confirmation.
6. Strong export carton.
7. Outer shipping label.
8. Photograph before dispatch when required.

Customers should provide a complete delivery address, contact person, telephone number, postal code, and importer information before shipment.

To preserve the condition of the steel nozzle holder:

• Store the part in a clean and dry room.
• Keep it inside protective packaging until installation.
• Avoid high humidity and corrosive chemicals.
• Prevent contact with dust, solder paste, adhesive, and metal particles.
• Do not stack heavy products on the holder.
• Avoid direct impact or dropping.
• Use clean gloves when handling precision surfaces.
• Separate new parts from removed or damaged components.
• Keep the identification label with the product.
• Apply inventory control to older spare parts.
• Inspect long-term stock before installation.

Maintenance frequency should follow machine usage, production environment, placement speed, component type, and the equipment manufacturer’s service procedure.

Part-number, machine-model, placement-head, and photograph confirmation help reduce incorrect orders.

Single-piece or small-quantity inquiries can be supported for urgent repair requirements, subject to current supply conditions.

The nozzle holder can be shipped together with nozzles, shafts, filters, springs, sensors, valves, feeders, motors, belts, cylinders, boards, and other SMT spare parts.

Export packing, commercial invoices, packing lists, and common international shipping methods can be arranged according to order requirements.

Providing complete information at the beginning allows faster checking of availability, price, condition, and delivery time.

Regular customers can establish a spare-parts list based on machine models, production-line quantities, failure history, and preventive-maintenance plans.

Before placing an order, please confirm:

The N610113699AA steel nozzle holder is commonly referenced for NPM H16 or 16-nozzle placement-head applications. Some product catalogs also associate it with NPM-D3 and selected NPM-W or NPM-W2 16-head configurations. Because one machine model may use different head versions, please confirm the installed head model and old-part number before ordering.

AB and AC suffixes appear in public trade references as revised or related steel nozzle-holder numbers. However, a suffix change may indicate an engineering, production, or logistics revision. Please provide the old-part label, machine model, placement-head type, and photographs so compatibility can be checked before shipment.

N210081891AB appears together with N610113699AA in some supplier titles and head-component lists, but the exact relationship is not consistently defined in public information. It may be an associated component, assembly reference, or cross-reference. The two numbers should not be treated as identical without checking the machine documentation or physical part.

Please send the complete part number, machine model, placement-head model, required condition, quantity, destination country, and clear photographs of the existing holder. For urgent orders, also provide the required delivery date and whether alternative conditions or confirmed revisions are acceptable.

A damaged holder may contribute to unstable nozzle movement, pickup errors, component drops, or placement variation. However, similar problems can also be caused by the nozzle, shaft, filter, spring, vacuum seal, solenoid valve, feeder, camera, or calibration. A complete head inspection is recommended before replacing parts.

Looking for the Panasonic N610113699AA steel nozzle holder or other SMT placement-head spare parts?

Send us your machine model, head model, required part number, quantity, product condition, and old-part photographs. Our sales team will check availability and provide a quotation, delivery schedule, packaging details, and shipping options.

For faster quotation, please use the inquiry title:

Inquiry for Panasonic N610113699AA Steel Nozzle Holder

Please include:

• Machine model
• Placement-head model
• Required quantity
• Required condition
• Old-part photographs
• Destination country
• Expected delivery date
