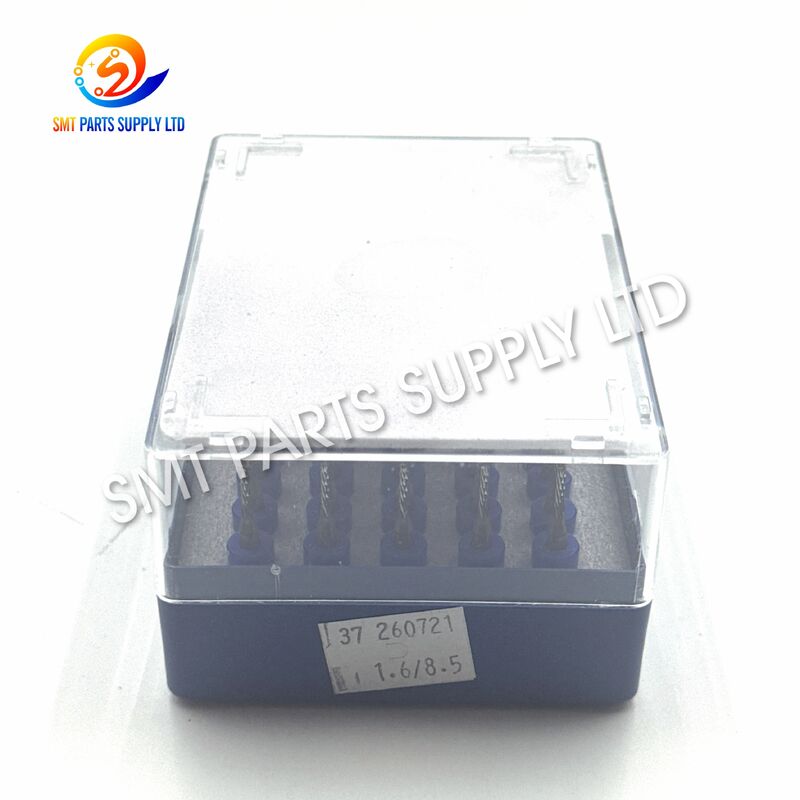

OEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision Grinding

Brand Name: OEM
Model Number: Confirmed According to Cutter Dimensions
Detail Information
Place of Origin:
CHINA&JAPEN
Product Name:
Tungsten Carbide PCB Separator Milling Cutter
Brand:
OEM
Series:
Custom-Series
Model:
Confirmed According To Cutter Dimensions
Part Number:
Assigned According To Final Specification
Product Category:
SMT Spare Parts
Subcategory:
PCB Separator Parts
Tool Type:
PCB Router Bit / Milling Cutter
Material:
Fine-Grain Solid Tungsten Carbide
Processing Method:
Precision Grinding
Main Function:
PCB Routing, Contour Cutting, Slotting And Depaneling
Applicable Machine:
PCB Separator, CNC PCB Router And Depaneling Machine
Applicable PCB:
FR-4, CEM-1, CEM-3, Aluminum PCB And Composite Board
Cutting Diameter:
0.8–3.175 Mm Typical Range; Custom Sizes Available
Common Diameters:
0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0, 3.175 Mm
Product Description

OEM Custom-Series Tungsten Carbide PCB Separator Milling Cutters

OEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision GrindingOEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision GrindingOEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision Grinding

OEM Custom-Series Tungsten Carbide PCB Separator Milling Cutters are precision cutting tools developed for PCB routing, contour cutting, slotting, and depaneling operations. Manufactured from fine-grain solid tungsten carbide, these cutters provide the rigidity, wear resistance, and dimensional stability required for continuous printed circuit board production.

The cutters are suitable for offline PCB separator machines, inline depaneling systems, CNC PCB routers, and automated PCB processing equipment. Different cutting diameters, shank diameters, flute geometries, cutting lengths, and overall lengths can be supplied according to the customer’s machine collet, PCB material, panel thickness, routing path, and production speed.

Compared with general-purpose cutting tools, PCB router milling cutters are designed to control burrs, dust, vibration, and edge chipping when processing FR-4, CEM-series boards, aluminum-backed PCBs, glass-fiber composites, and other electronic substrates. Each specification should be selected according to the actual PCB construction and machine operating conditions.


Key Product Information
Item Description
Product Type PCB Separator Milling Cutter
Product Series OEM Custom-Series
Tool Material Fine-Grain Solid Tungsten Carbide
Main Function PCB Routing, Depaneling, Contour Cutting and Slotting
Applicable Equipment PCB Separator, PCB Router and CNC Depaneling Machine
Typical Board Materials FR-4, CEM-1, CEM-3, Aluminum PCB and Composite PCB
Cutter Diameter Multiple Standard and Customized Options
Shank Diameter Confirm According to Machine Collet
Flute Design Up-Cut, Down-Cut, Compression or Customized Geometry
Surface Treatment Uncoated or Optional Coating
Production Condition New
Customization Diameter, Length, Flute, Edge Geometry and Packaging
Model Standard Custom Series; Confirm by Drawing or Dimensional Data
Part Number Assigned According to Confirmed Specification

Product Advantages
Advantage Customer Benefit
Fine-Grain Carbide Material Provides high rigidity and improved resistance to abrasive PCB materials
Precision-Ground Cutting Edges Supports stable routing accuracy and cleaner board edges
Multiple Diameter Options Matches different slot widths, contour radii, and component clearances
Optimized Flute Geometry Improves chip and dust evacuation during high-speed routing
Controlled Tool Concentricity Helps reduce vibration, cutter marks, and uneven edge quality
Custom Cutting Length Matches different PCB thicknesses and stacked-panel applications
Stable Shank Dimensions Supports secure clamping inside the router spindle collet
Consistent Batch Production Helps standardize replacement schedules and processing quality
Protective Packaging Reduces edge damage during storage and transportation
Technical Selection Support Allows specification matching by sample, drawing, or machine data

Cause: Common Problems During PCB Routing

PCB depaneling is a precision machining process. Even a small mismatch between the cutter, PCB material, and router parameters can produce visible defects or shorten tool life.

1. Excessive Burr Formation

Burrs may appear when the cutting edge becomes worn, when the flute geometry is unsuitable, or when the feed rate and spindle speed are not properly matched. Burrs can affect board appearance, assembly clearance, and downstream inspection.

2. PCB Edge Chipping

FR-4 and other glass-fiber materials can chip when the cutter vibrates, when the tool projection is too long, or when the cutter diameter is unsuitable for the routing radius. A damaged cutting edge can also increase chipping.

3. Short Cutter Service Life

Printed circuit boards contain abrasive glass fibers and resin systems. General-purpose high-speed steel tools may wear quickly under continuous production. Incorrect cutting parameters, insufficient dust extraction, and poor spindle condition can also accelerate wear.

4. Cutter Breakage

Tool breakage can occur because of excessive feed speed, incorrect plunge methods, insufficient shank clamping, unstable spindle bearings, excessive tool extension, or contact with unexpected metal features.

5. Unstable Routing Dimensions

Runout, spindle vibration, improper cutter diameter, and inconsistent tool quality may create dimensional deviations. These deviations can influence board outline accuracy, slot size, and the distance between the routed edge and electronic components.

6. Excessive Dust Around the Routing Area

PCB routing generates fine dust. An inappropriate flute design or insufficient vacuum extraction may cause dust to remain inside the cutting channel, increasing heat and cutting resistance.

7. Delamination Near the Board Edge

Layer separation may occur when the tool is blunt, the routing direction is incorrect, or the cutting force is not properly controlled. Multilayer boards and boards with sensitive edge structures require careful tool selection.


Solution: Precision Carbide Cutters for Controlled Depaneling

Our tungsten carbide PCB separator milling cutters are produced to provide a stable cutting solution for electronic manufacturing operations.

Fine-Grain Solid Carbide Construction

Fine-grain tungsten carbide combines rigidity with wear resistance. This material is suitable for routing abrasive substrates such as glass-fiber-reinforced FR-4. The rigid tool body helps maintain edge geometry under high spindle speeds.

Precision-Ground Flutes

The flute profile is ground for controlled cutting and effective dust removal. Depending on the PCB structure and required edge quality, customers can select up-cut, down-cut, compression-style, or application-specific flute designs.

Accurate Diameter Control

The cutter diameter determines routing width, minimum corner radius, and component clearance. Precision diameter control helps maintain consistent PCB outlines across repeated production batches.

Stable Shank and Concentricity

A properly matched shank reduces movement inside the collet. Controlled concentricity helps minimize vibration, uneven wear, oversized routing channels, and visible cutter marks.

Application-Based Specification Matching

The cutter can be selected according to:

Selection Factor Information Required
PCB Material FR-4, CEM, aluminum-backed, composite, or other substrate
PCB Thickness Actual finished thickness of the board or panel
Required Slot Width Minimum routed channel width
Minimum Corner Radius Smallest internal contour radius
Spindle Collet Required shank diameter
Spindle Speed Normal machine operating range
Feed Rate Actual routing speed
Routing Direction Clockwise or counterclockwise toolpath
Dust Extraction Vacuum nozzle position and suction capacity
Production Volume Prototype, medium-volume, or continuous production
Edge Requirement Standard edge, low-burr edge, or high-finish edge
Machine Type Offline router, inline separator, or CNC platform

Specifications
General Specification Table
Parameter Standard Description
Product Name Tungsten Carbide PCB Separator Milling Cutter
Product Category SMT Spare Parts / PCB Separator Parts
Material Solid Tungsten Carbide
Carbide Grade Fine-Grain or Application-Specific Carbide
Manufacturing Method Precision Grinding
Cutting Diameter Typically 0.8–3.175 mm; Other Sizes Available
Common Diameter Options 0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0 and 3.175 mm
Shank Diameter Selected According to Machine Collet
Cutting Length Customized According to PCB Thickness
Overall Length Standard or Customized
Number of Flutes Selected According to Material and Application
Flute Direction Up-Cut, Down-Cut or Customized
Helix Design Application-Specific
Tip Type Flat End or Customized End Geometry
Edge Finish Precision Ground
Coating Uncoated or Optional Application-Specific Coating
Suitable Materials FR-4, CEM-1, CEM-3, Aluminum PCB and Composite Substrates
Main Application PCB Routing, Cutting, Slotting and Depaneling
Machine Compatibility Confirmed by Collet, Tool Dimensions and Operating Parameters
Condition New
Packaging Individual Protective Tube or Custom Industrial Packaging
Order Type Standard Specification or Customized Production

Important: The diameter range and dimensional options above represent commonly requested configurations. Final specifications must be confirmed by dimensional drawing, existing cutter sample, machine manual, or customer-supplied measurements.


Typical Diameter Selection Reference
Cutter Diameter Typical Use
0.8 mm Narrow routing channels and compact PCB layouts
1.0 mm Precision contour routing with limited component clearance
1.2 mm Small-radius corners and general fine routing
1.5 mm Balanced cutting strength and routing flexibility
1.6 mm Common PCB outline and slot-processing applications
2.0 mm General depaneling with increased cutter rigidity
2.4 mm Wider routing channels and thicker board structures
3.0 mm Higher-rigidity contour cutting
3.175 mm Larger routing channels and compatible 1/8-inch collet systems

The final cutter diameter should not be selected only according to board thickness. The minimum internal radius, spacing around components, machine power, routing channel width, and required edge quality must also be considered.


Flute Geometry Selection
Flute Type Main Characteristics Recommended Consideration
Up-Cut Directs chips and dust upward Useful where upper-side extraction is effective
Down-Cut Directs cutting force and debris downward Can help control top-surface lifting in suitable applications
Compression Style Combines upward and downward cutting action Suitable for reducing edge damage on both surfaces
Straight Flute Simple cutting geometry Selected for specific materials and operating conditions
Multi-Flute Provides multiple cutting edges Requires correct dust evacuation and feed settings
Customized Geometry Developed for specific board structures Recommended for unusual materials or high-volume projects

OEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision GrindingOEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision GrindingOEM Custom-Series Fine-Grain Solid Tungsten Carbide PCB Separator Milling Cutter with Precision Grinding
Application

These milling cutters are used in electronic manufacturing plants, PCB assembly factories, contract manufacturing facilities, router-machine service departments, and PCB depaneling production lines.

Applicable Equipment
  • Offline PCB separator machines
  • Inline automatic PCB depaneling systems
  • CNC PCB router machines
  • Desktop PCB routing equipment
  • Automated printed circuit board cutting systems
  • Fixture-based PCB separation platforms
  • Multi-spindle PCB router systems
  • Customized electronic substrate processing equipment

Compatibility must be confirmed by the cutter shank diameter, machine collet, overall length, cutting diameter, allowable spindle speed, and toolholder structure.


Applicable PCB Materials
PCB Material Application Notes
FR-4 Common glass-fiber epoxy material requiring wear-resistant cutters
CEM-1 Composite board material used in selected electronic products
CEM-3 Composite epoxy board requiring stable cutting conditions
Aluminum-Backed PCB Requires careful parameter and cutter-geometry selection
Copper-Clad Laminate Suitable cutter depends on laminate construction
Multilayer PCB Requires attention to delamination and edge quality
Flexible-Rigid PCB Requires specialized support and routing conditions
Composite Electronic Substrate Cutter must be selected according to material composition

Typical Processing Operations
Operation Description
PCB Outline Routing Produces the final external contour of individual boards
Panel Depaneling Separates finished circuit boards from a larger production panel
Internal Slot Cutting Processes internal openings, channels, and clearance slots
Contour Trimming Removes excess board material around the designed outline
Fixture-Assisted Routing Uses dedicated fixtures to hold panels during separation
Tab Removal Cuts residual tabs after partial panel separation
Prototype Board Cutting Supports small-batch and engineering production
High-Volume Routing Enables repeated automated routing with scheduled tool replacement

How It Works

A PCB router spindle rotates the tungsten carbide milling cutter at high speed. The machine moves either the spindle or the PCB panel along a programmed toolpath. As the cutting edges contact the board, the cutter removes material from the routing channel.

Step 1: Tool Installation

The cutter shank is inserted into the spindle collet. The shank surface must be clean, and the tool should be clamped to the correct depth. Excessive cutter projection can increase vibration and breakage risk.

Step 2: PCB Positioning

The PCB panel is placed in a routing fixture. Proper support prevents panel movement, vibration, bending, and contact between the cutter and fixture.

Step 3: Program Alignment

The router program defines the cutting path, entry point, travel direction, cutting depth, and sequence. Fiducial or vision alignment may be used depending on the machine configuration.

Step 4: High-Speed Routing

The spindle rotates the cutter while the machine follows the programmed contour. The flute geometry cuts the fiberglass, resin, copper, and other materials contained in the PCB structure.

Step 5: Dust Extraction

A vacuum system collects routing dust near the cutting area. Effective extraction helps prevent material buildup, reduces heat, and keeps the work area cleaner.

Step 6: Edge Inspection

After separation, the PCB edge is inspected for burrs, chipping, dimensional deviation, delamination, incomplete cutting, and visible tool marks.

Step 7: Tool-Life Control

Production personnel record cutter usage by routing distance, panel quantity, operating time, or edge-quality condition. The cutter is replaced before excessive wear affects production quality.


Recommended Operating Practices
Practice Purpose
Clean the Collet Before Installation Prevents runout caused by dust or contamination
Minimize Tool Projection Improves rigidity and reduces vibration
Use an Appropriate Entry Method Reduces sudden impact on the cutter
Confirm Spindle Condition Prevents premature wear caused by bearing vibration
Maintain Effective Vacuum Extraction Removes abrasive dust from the routing channel
Use Stable PCB Fixtures Prevents panel movement and edge damage
Inspect the Cutter Regularly Identifies wear, chipping, or resin buildup
Avoid Excessive Feed Rate Reduces cutting load and breakage risk
Match Rotation and Toolpath Direction Helps control cutting force and edge quality
Replace Worn Collets Maintains secure tool clamping and concentricity
Record Tool Usage Supports preventive replacement planning
Test New Parameters on Sample Boards Reduces production risk before batch processing

Actual spindle speed and feed rate must be determined according to the machine capability, cutter diameter, flute design, PCB material, board thickness, routing depth, and required edge quality.


How to Choose
1. Confirm the Machine Collet Size

The shank diameter must match the spindle collet. Do not assume that all PCB separator machines use the same tool diameter or collet standard.

Required information:

  • Machine brand and model
  • Spindle model
  • Collet specification
  • Existing cutter shank diameter
  • Maximum permitted tool length
2. Confirm the PCB Material

FR-4, aluminum-backed boards, CEM materials, and composite boards create different cutting loads. Glass-fiber content and metal layers can significantly influence tool wear.

3. Confirm the Board Thickness

The cutting length must fully cover the board thickness while allowing proper positioning. An excessively long cutting section may reduce tool rigidity.

4. Confirm the Minimum Routing Radius

The cutter radius determines the smallest internal corner that can be processed. A smaller cutter provides tighter routing flexibility, while a larger cutter generally provides greater rigidity.

5. Confirm the Required Routing Channel

The routing channel must accommodate the cutter diameter and the programmed toolpath. The customer should also consider the distance between the PCB edge and nearby components.

6. Select the Flute Direction

Up-cut, down-cut, and compression geometries create different cutting-force and dust-flow characteristics. Selection should be based on the fixture design, vacuum position, board surface, and edge requirement.

7. Evaluate Production Volume

For high-volume continuous routing, tool consistency and replacement management are especially important. Customers can order cutters in production batches with traceable specifications and standardized packaging.

8. Review Edge-Quality Requirements

A standard industrial edge, low-burr edge, and cosmetic-quality edge may require different cutter geometry and processing parameters.


Selection Checklist for Inquiry
Required Information Example
Machine Brand and Model Customer-Supplied Information
Existing Cutter Model Printed Code or Customer Reference
Cutter Diameter Measured Cutting Diameter
Shank Diameter Measured Shank Size
Cutting Length Effective Flute Length
Overall Length Complete Tool Length
PCB Material FR-4, Aluminum PCB or Other
PCB Thickness Finished Board Thickness
Required Flute Type Up-Cut, Down-Cut or Unknown
Minimum Corner Radius According to PCB Drawing
Monthly Consumption Estimated Pieces per Month
Required Quantity Sample, Trial Order or Batch Order
Packaging Requirement Standard Tube or Customized Label
Drawing or Sample Recommended for Accurate Matching

For specifications without a readable model number, customers may provide clear photographs beside a ruler or caliper. A dimensional drawing or physical sample provides more reliable identification.


Quality Control

Each production batch can be inspected according to the confirmed technical specification.

Inspection Items
Inspection Item Quality Purpose
Cutting Diameter Confirms routing-channel dimensions
Shank Diameter Ensures correct collet matching
Cutting Length Matches board thickness and cutting depth
Overall Length Prevents machine-clearance problems
Edge Condition Checks for grinding defects and cutting-edge damage
Flute Geometry Confirms the ordered cutting design
Tool Straightness Helps maintain routing stability
Concentricity Reduces vibration and uneven cutting
Surface Condition Identifies contamination or handling damage
Packaging Condition Protects the cutting edge during delivery
Batch Identification Supports specification and order traceability

Packaging and Storage

The cutting edge of a carbide milling cutter is hard but sensitive to impact. Correct handling helps prevent microscopic edge damage before installation.

Standard Packaging
  • Individual protective plastic tube
  • Cutter tip secured against movement
  • Specification label on outer packaging
  • Batch packaging for production orders
  • Export carton with internal protection
  • Customized label available according to order quantity
Storage Recommendations
Recommendation Reason
Keep Cutters in Protective Tubes Prevents contact between cutting edges
Store in a Dry Environment Reduces contamination and corrosion risk on associated surfaces
Separate Different Diameters Prevents specification mixing
Avoid Dropping the Tool Carbide can chip under impact
Do Not Touch Cutting Edges Directly Protects operators and prevents contamination
Use First-In, First-Out Management Improves inventory traceability
Keep Labels with Each Batch Prevents installation of an incorrect specification

Troubleshooting Guide
Problem Possible Cause Recommended Check
Heavy Burrs Worn edge or incorrect parameters Inspect cutter and review feed conditions
Edge Chipping Excessive vibration or unsuitable geometry Check spindle, fixture, and cutter selection
Cutter Breakage Excessive load or long projection Reduce projection and verify toolpath
Wide Routing Channel Spindle runout or wrong diameter Measure cutter and inspect collet
Uneven Edge Finish Tool wear or panel movement Replace tool and inspect fixture
Dust Accumulation Weak extraction or unsuitable flute Check vacuum system and flute direction
Delamination Blunt tool or excessive cutting force Replace cutter and optimize parameters
Short Tool Life Abrasive material or incorrect settings Review material, speed, feed, and extraction
Cutter Slippage Incorrect collet or insufficient clamping Clean and inspect the toolholder
Excessive Noise Vibration, wear, or spindle issue Stop operation and inspect the complete system

FAQ
1. What machines can use these PCB separator milling cutters?

These cutters can be used with many offline PCB separators, inline depaneling machines, CNC PCB routers, and customized routing systems. Compatibility must be confirmed through the shank diameter, cutter dimensions, spindle collet, allowable tool length, and operating requirements rather than machine name alone.

2. Can you supply customized cutter diameters and lengths?

Yes. Cutting diameter, shank diameter, cutting length, overall length, flute direction, flute quantity, and packaging can be produced according to a drawing, existing sample, machine specification, or confirmed dimensional information. A sample or complete drawing is recommended for non-standard configurations.

3. Which cutter is suitable for FR-4 circuit boards?

Fine-grain solid tungsten carbide cutters are commonly selected for FR-4 because the glass-fiber content is abrasive. The final diameter and flute geometry should be chosen according to board thickness, routing radius, channel width, spindle speed, feed rate, and required edge quality.

4. How can cutter service life be improved?

Use a clean and correctly sized collet, minimize cutter projection, maintain the spindle, secure the PCB fixture, provide effective dust extraction, avoid excessive feed loads, and replace the cutter before severe wear occurs. Production records can help establish a preventive replacement interval.

5. What information is required for an accurate quotation?

Please provide cutter diameter, shank diameter, cutting length, overall length, flute type, PCB material, board thickness, machine model, required quantity, and photographs or drawings. When the specification is unknown, sending an existing sample is the most reliable identification method.


Why Choose Our PCB Router Cutters
Service Capability Value for Buyers
Standard and Customized Sizes Supports different router machines and PCB structures
Dimensional Matching Support Reduces the risk of ordering an incorrect cutter
Sample Order Availability Allows production testing before larger orders
Batch Supply Capability Supports maintenance inventory and regular replacement
Export Packaging Protects precision tools during international delivery
Specification Labeling Simplifies warehouse and production management
Application Communication Helps identify important selection parameters
OEM Supply Supports distributor and equipment-service requirements
Stable Production Planning Suitable for repeated and scheduled purchasing
Fast Quotation Preparation Available after receipt of complete technical details

Contact Us

Looking for reliable tungsten carbide milling cutters for your PCB separator, CNC router, or automated depaneling line?

Please send us the following information:

  • Machine brand and model
  • Existing cutter model or part number
  • Cutting diameter and shank diameter
  • Cutting length and overall length
  • PCB material and board thickness
  • Flute direction or clear product photographs
  • Required quantity and expected delivery schedule

Our team will check the dimensional requirements and recommend a suitable standard or customized cutter specification. Samples, drawings, and close-up photographs are welcome for accurate matching.

Send your inquiry today for specification confirmation, sample availability, production lead time, packaging options, and a competitive quotation.
