Panasonic Precision Slide Cam for AVK AI Machine with Guided Sliding Movement and Precision Metal Construction

The Panasonic 102031200108 Slide Cam is a precision mechanical component used in compatible AVK automatic insertion machine assemblies. Also identified as a CAM (SLIDE), this part converts or transfers mechanical movement inside the operating mechanism, supporting controlled positioning during repeated insertion, forming, cutting, or clinching cycles.

A worn, damaged, incorrectly fitted, or contaminated slide cam may cause unstable movement, abnormal noise, incomplete mechanical travel, inconsistent component processing, or unexpected machine stoppage. Replacing the affected cam with a correctly matched part helps restore smooth mechanical operation and reduces the risk of secondary wear to rollers, guides, levers, pins, cutters, and related moving parts.

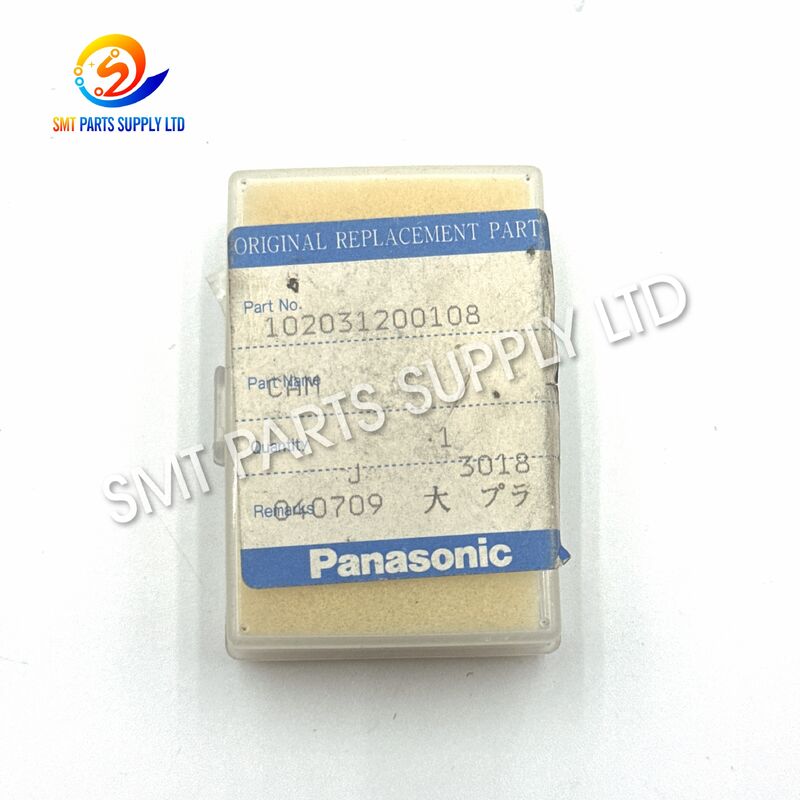

The part number is 102031200108. Because machine configurations and installation positions may differ, buyers should confirm the complete part number, machine model, mounting location, dimensions, and photos of the existing component before placing an order.

The slide cam works repeatedly inside a mechanical transmission or processing assembly. During normal production, its contact surfaces are exposed to continuous movement, pressure, friction, vibration, and accumulated contamination. Even a small change in the cam profile or sliding surface can influence the motion of connected parts.

A slide cam should be inspected when the machine shows one or more of the following conditions:

• Abnormal clicking, scraping, or impact noise.
• Unstable movement during the operating cycle.
• Intermittent mechanical jamming.
• Increased resistance in the sliding assembly.
• Incomplete return to the home position.
• Uneven cutting, forming, or clinching results.
• Repeated mechanical position alarms.
• Visible wear, scratches, deformation, or chipped edges.
• Excessive clearance between the cam and its mating component.
• Grease containing visible metal particles.
• Unusual vibration around the operating assembly.
• Repeated damage to rollers, pins, guides, or levers.

These symptoms may also be caused by other mechanical components. The cam, roller, shaft, guide, spring, lever, pin, cutter, and mounting base should therefore be inspected as a complete operating system.

Replacing the worn 102031200108 Slide Cam with a correctly matched component can help restore the intended movement of the compatible automatic insertion machine mechanism.

The replacement process should include more than simply removing the old cam. A complete inspection helps prevent the new part from being damaged by an existing problem elsewhere in the assembly.

A correctly selected and properly installed slide cam may provide the following benefits:

• More consistent mechanical movement.
• Reduced sticking and impact during repeated cycles.
• Improved operating stability.
• Lower risk of unplanned machine stoppage.
• Better protection for related rollers and guide parts.
• Reduced secondary damage to the mechanical assembly.
• More predictable maintenance planning.
• Improved repeatability in component processing.
• Faster restoration of an idle production machine.
• Longer service life when combined with correct lubrication and adjustment.

Performance depends on the actual machine condition, maintenance quality, operating environment, and accuracy of installation.

The 102031200108 Slide Cam is intended for use in a compatible Panasonic AVK automatic insertion machine mechanism. Automatic insertion equipment is commonly used for placing through-hole electronic components into printed circuit boards during electronics manufacturing.

Depending on the specific machine configuration, a slide cam may operate near a:

• Lead-processing mechanism.
• Component-forming mechanism.
• Cutting or clinching assembly.
• Guide and pusher assembly.
• Lever and roller transmission.
• Reciprocating slide mechanism.
• Mechanical timing assembly.
• Component insertion processing station.

The exact installation location must be determined by the machine parts manual, existing component, assembly drawing, or qualified maintenance technician.

A slide cam uses a shaped mechanical profile to control the movement of a mating component. As the machine completes an operating cycle, a roller, follower, lever, pin, or sliding element contacts the cam surface.

The profile of the cam determines how the connected mechanism moves. It may control the direction, distance, timing, acceleration, return movement, or operating sequence of another component.

The cam profile is a functional surface, not merely an external shape. Wear or damage can change the motion of the connected mechanism.

A damaged profile may cause:

• Movement to begin too early or too late.
• Insufficient mechanical stroke.
• Excessive impact at the end of travel.
• Irregular pressure on a roller or lever.
• Slow or incomplete return movement.
• Increased vibration and noise.
• Inconsistent component processing.
• Accelerated wear on associated parts.

For this reason, the replacement part should not be selected only by visual similarity. The complete part number and installation details must be checked.

The product is supplied under part number 102031200108, helping maintenance teams identify the required component more efficiently.

The slide cam is designed for a dedicated automatic insertion machine mechanism rather than being a general-purpose industrial cam.

A correctly installed component supports controlled movement between the cam and its mating roller, lever, guide, or slide.

The part can be replaced during scheduled machine maintenance or mechanical overhaul without changing the machine control software.

Keeping the correct cam in maintenance stock can shorten repair time when the original component becomes worn or damaged.

The product is useful for factories continuing to operate AVK automatic insertion equipment and requiring reliable spare-parts support.

Part-number verification, photo comparison, dimensional checking, and installation-position confirmation can be completed before shipment.

Export packaging, commercial documents, and multiple delivery options can be arranged according to the order requirements.

Several machine parts may look similar while having different profiles, mounting holes, thicknesses, orientations, or operating functions. Selecting only by appearance can result in an incorrect order.

Some market listings describe 102031200108 only as CAM (SLIDE), while others use left-side or right-side wording. Do not select the product only according to an L or R description.

The safest confirmation method is to provide:

1. The complete part number.
2. The machine model and serial number.
3. A clear photo of the existing cam.
4. A photo of its installation position.
5. Front, back, and side views.
6. Dimensions or a parts-manual reference when available.

Please verify the following:

• Is the complete part number 102031200108?
• Is the part removed from a compatible automatic insertion machine?
• Does the cam profile match the offered component?
• Are the mounting-hole positions identical?
• Is the thickness the same?
• Does the installation orientation match?
• Are the connected roller and guide still serviceable?
• Is there any machine collision or misalignment that must be corrected first?
• Is the requested quantity correct?
• Are there any additional related parts required for the repair?

Installation should be performed by a trained technician familiar with automatic insertion machine mechanisms.

• Keep the mechanism clean and free from component fragments.
• Use the lubricant specified for the machine.
• Avoid excessive grease that may collect dust.
• Inspect the cam contact surface at scheduled intervals.
• Check the roller for flat spots or restricted rotation.
• Confirm that mounting screws remain secure.
• Investigate abnormal noise immediately.
• Do not continue production when the mechanism repeatedly jams.
• Record replacement dates and machine operating hours.
• Store spare cams in dry, protected packaging.
• Avoid contact between precision surfaces and hard tools.
• Replace damaged related components at the same maintenance interval.

Each order should be checked against the confirmed purchasing information before shipment.

For urgent machine repair, customers are encouraged to request photo confirmation before shipment.

The slide cam is a precision mechanical spare part and should be protected from collision, moisture, scratching, and contamination during transportation.

1. The part is visually inspected.
2. Precision surfaces are protected.
3. The component is placed in an individual protective bag.
4. Cushioning material is added around the product.
5. The part is packed in a suitable inner box.
6. The inner box is placed inside a reinforced export carton.
7. The carton is labeled according to the order information.
8. Shipment documents are prepared according to customer requirements.

The final shipping method depends on quantity, destination, urgency, weight, package size, and customer instructions.

We focus on supplying spare parts for SMT production equipment and automatic insertion machines. Our service is designed to help electronics factories, maintenance companies, equipment dealers, and contract manufacturers identify and purchase machine-specific components efficiently.

The 102031200108 is a mechanical CAM (SLIDE), commonly described as a slide cam. It is used in a compatible automatic insertion machine mechanism to guide or transfer controlled movement during repeated production cycles.

No. The part is associated with compatible automatic insertion machine mechanisms, including AVK applications, but it should not be assumed to fit every AI machine. Please provide the machine model, serial number, installation photo, and original sample before ordering.

Market descriptions are not fully consistent regarding the side designation. To avoid incorrect selection, confirm the complete profile, mounting holes, dimensions, installation location, and photos of the removed component rather than relying only on an L or R label.

Please provide part number 102031200108, machine model, machine serial number, required quantity, destination country, original-part photos, installation-position photos, and dimensions when available. This information allows faster stock and compatibility checking.

Yes. Inspect the roller, lever, guide, pin, shaft, spring, bearing, cutter, mounting base, lubrication condition, and mechanical alignment. A damaged related component may shorten the life of the new slide cam.
