FUJI NXT Y-axis Precision Bearing NSK 7001AT Series Angular Contact Ball Bearing 12 × 28 × 8 mm

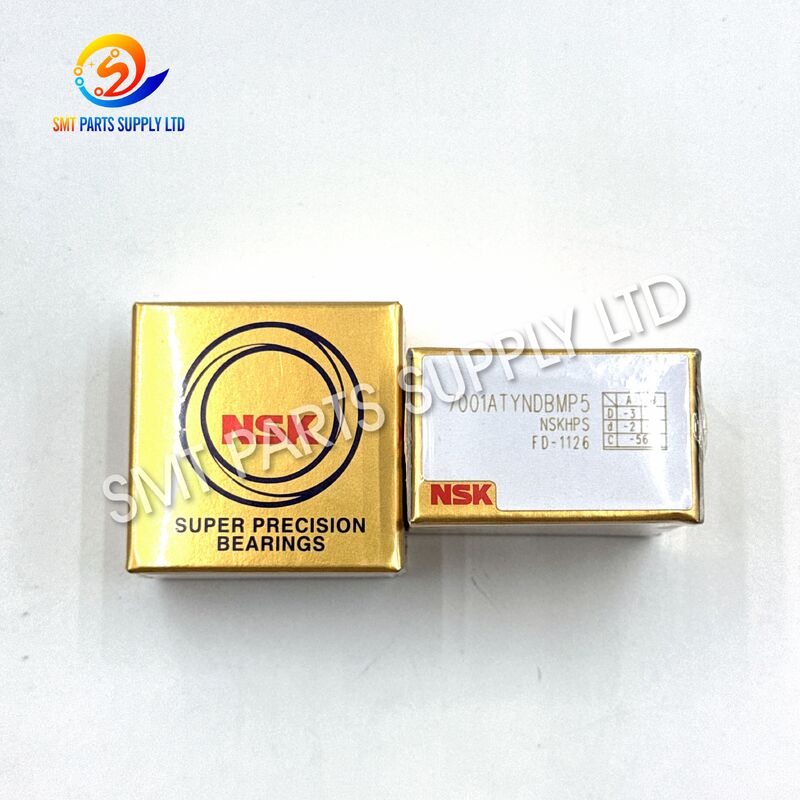

FUJI H4209W NSK 7001ATYNDBMP5 NXT Y-Axis Precision Bearing

The FUJI H4209W bearing is a precision motion-support component used in the Y-axis mechanism of FUJI NXT surface-mount placement equipment. It is commonly identified by the NSK 7001AT bearing series, with complete designations such as 7001ATYNDBMP5 or 7001ATYDBC8P5 appearing in different parts references. The standard dimensional envelope associated with this product is 12 mm inner diameter, 28 mm outer diameter, and 8 mm width. Public NXT parts information identifies H4209W as a bearing installed in the Y-axis ball-screw assembly, where two pieces may be shown in the related mechanical structure.

Designed for precision rotary support, this angular contact bearing helps control radial movement and axial displacement inside the positioning mechanism. Correct bearing selection, installation direction, matching arrangement, lubrication condition, and preload are important for maintaining smooth axis movement and reliable positioning.

This product is suitable for SMT factories, machine maintenance companies, equipment rebuilders, spare-parts distributors, and technical service teams requiring a replacement bearing for FUJI NXT motion assemblies. Buyers should confirm the machine configuration, installed bearing marking, assembly position, and required quantity before placing an order.

Key Product Identification

The H4209W part number is associated with FUJI NXT bearing applications, while available parts-list information places the bearing in a Y-axis ball-screw structure.

Product Features

Cause

Why Does an NXT Y-Axis Bearing Require Replacement?

The Y-axis of an SMT placement machine performs frequent acceleration, deceleration, positioning, and return movements during production. The bearing supporting the ball screw or rotating shaft must operate repeatedly while maintaining controlled axial and radial movement. Over time, mechanical wear or installation-related problems may reduce bearing performance.

1. Long-Term Mechanical Fatigue

Continuous production cycles expose bearing raceways and rolling elements to repeated loads. Even when the machine is correctly maintained, long operating hours can gradually increase internal clearance, surface fatigue, vibration, or rolling resistance.

2. Lubrication Deterioration

Grease can degrade because of operating temperature, contamination, excessive service time, incompatible lubricant, or incorrect lubrication quantity. Insufficient lubrication increases friction, while excessive grease can increase drag and operating temperature.

3. Dust and Contamination

SMT production environments may contain fine dust, component debris, dried lubricant, packaging particles, or maintenance residue. Contaminants entering the bearing area can damage the raceway surface and create abnormal noise or vibration.

4. Incorrect Bearing Preload

Angular contact bearings are sensitive to mounting arrangement and preload. Excessive preload may generate heat, noise, and premature wear. Insufficient preload may create axial movement, reduced rigidity, or unstable axis positioning.

5. Misalignment

A misaligned bearing housing, bent shaft, damaged ball screw, uneven mounting surface, or incorrectly tightened locknut can place an abnormal load on the bearing. Replacing the bearing without correcting the alignment problem may result in repeated failure.

6. Improper Installation

Pressing force applied through the rolling elements, impact from a hammer, contamination during assembly, incorrect installation direction, or uncontrolled tightening torque can damage a new bearing before the machine returns to production.

7. Collision or Emergency Stop

A mechanical collision, abrupt axis stop, excessive resistance, or ball-screw obstruction can transfer shock load to the supporting bearings. The bearing may remain operational but develop noise, vibration, or reduced positioning accuracy later.

Common Failure Symptoms

These symptoms are not caused exclusively by the bearing. The ball screw, coupling, motor, linear guide, locknut, encoder, lubrication system, and mounting housing should also be inspected before replacement.

Solution

Precision Replacement for the FUJI NXT Y-Axis Support Position

Replacing the worn H4209W bearing can help restore smooth Y-axis movement when inspection confirms that the bearing is damaged or no longer meets the required rotational condition. A correct replacement procedure should include identification, inspection, cleaning, installation, adjustment, and operational verification.

Recommended Replacement Process

Important Installation Notes

• Do not strike the bearing directly with a metal hammer.
• Do not transfer pressing force through the balls.
• Keep the workbench, tools, shaft, housing, and bearing clean.
• Do not mix unmatched bearing specifications without technical confirmation.
• Do not change the installation direction of an angular contact bearing.
• Do not apply an unspecified lubricant.
• Do not reuse a damaged locknut, spacer, collar, or retaining component.
• Check the ball screw for bending, wear, scoring, or abnormal resistance.
• Verify the linear guides before assuming that every Y-axis issue is caused by the bearing.
• Follow the equipment maintenance manual and site safety procedures.

Specifications

Main Product Specifications

Public bearing and trade references identify the 7001A dimensional platform as 12 mm bore, 28 mm outside diameter, and 8 mm width. Available H4209W records also identify the component as an NSK bearing for FUJI NXT equipment.

Suffix Verification Table

Suffix interpretation should not be used as the only purchasing criterion. The complete marking, bearing arrangement, machine configuration, and assembly documentation should be checked together.

Quality Control

Incoming Inspection

Each supplied bearing should be checked against the order requirements before shipment. The inspection process may include:

• FUJI part-number comparison.
• NSK model and suffix comparison.
• Inner-diameter measurement.
• Outer-diameter measurement.
• Width measurement.
• Surface and raceway appearance inspection.
• Corrosion and contamination inspection.
• Packaging-condition inspection.
• Manual rotational-condition inspection.
• Quantity verification.
• Label and batch verification.
• Photo confirmation when requested.

Pre-Shipment Verification

Application

Primary Equipment Application

The H4209W bearing is mainly marketed as a precision replacement bearing for FUJI NXT SMT placement equipment. Parts-list records connect it with an NXT Y-axis ball-screw assembly.

Typical Application Areas

Suitable Buyers

• SMT electronics manufacturing plants.
• EMS production facilities.
• FUJI equipment users.
• SMT machine repair companies.
• Placement-machine rebuilding workshops.
• Industrial automation maintenance teams.
• SMT spare-parts distributors.
• Overseas equipment service providers.
• Factory engineering departments.
• Preventive-maintenance teams.

How It Works

Angular Contact Bearing Principle

An angular contact ball bearing uses raceway geometry that creates a contact line between the balls and raceways at an angle to the radial plane. This design allows the bearing to support radial load and axial load at the same time. NSK describes angular contact ball bearings as products suitable for combined loading, with different configurations selected according to axial-load direction and required rigidity.

Function in the Y-Axis Mechanism

Inside a precision positioning axis, the servo motor rotates the ball screw. The ball-screw nut converts rotary motion into linear movement, causing the machine structure to travel along the Y-axis.

The support bearing performs several important functions:

1. It supports the rotating end of the ball screw.
2. It helps control axial displacement.
3. It maintains rotational alignment.
4. It contributes to the rigidity of the drive system.
5. It reduces unwanted movement during acceleration.
6. It helps the servo system produce consistent positioning.
7. It supports repeatable machine movement over continuous cycles.

Why Bearing Rigidity Matters

During rapid acceleration or deceleration, axial force can act on the ball-screw support. If the bearing has excessive clearance, the screw may move slightly in the axial direction. This movement can reduce positioning stability and create inconsistent mechanical response.

A correctly selected and installed angular contact bearing provides controlled support. When the bearing arrangement, preload, lubrication, shaft fit, and housing fit are correct, the axis can operate with smoother rotation and more stable positioning.

Relationship with Other Components

A bearing replacement will not correct a damaged ball screw, worn linear guide, loose coupling, defective motor, or incorrect servo setting. Complete mechanical diagnosis is recommended.

Performance Benefits

1. Stable Axis Support

The bearing helps stabilize the rotating ball screw and limit unwanted shaft movement.

2. Smooth Mechanical Travel

Correct rolling contact reduces friction compared with sliding support and promotes smoother Y-axis motion.

3. Controlled Axial Position

The angular contact design supports axial force and helps maintain the intended ball-screw position.

4. Precision Motion Capability

A suitable precision-grade bearing supports the repeatability requirements of SMT placement equipment.

5. Reduced Mechanical Vibration

Replacing a worn or damaged bearing may reduce verified bearing-related vibration and noise.

6. Maintenance Efficiency

Using the correct H4209W and NSK identification reduces the risk of ordering an unrelated standard bearing.

7. Production Reliability

Preventive replacement can reduce the possibility of unexpected axis stoppage caused by progressive bearing damage.

8. Rebuild Compatibility

The component is suitable for maintenance workshops rebuilding or restoring FUJI NXT motion assemblies.

Comparison with a General-Purpose Bearing

A bearing with the same 12 × 28 × 8 mm dimensions is not automatically an acceptable replacement. Internal design, contact angle, precision grade, cage type, matching condition, preload, and suffix may differ.

How To Choose

Step 1: Confirm the FUJI Part Number

Check whether the machine parts list, service document, removed package, or maintenance record identifies the required component as H4209W.

Step 2: Record the Complete Bearing Marking

Do not provide only “7001.” Photograph or write down every character engraved on the bearing, including prefixes and suffixes.

Possible markings in available references include:

• 7001ATYNDBMP5
• 7001ATYDBC8P5
• 7001AT
• H4209W

Because full suffix records differ across available listings and parts documents, the removed bearing marking should be treated as the primary purchasing reference.

Step 3: Confirm the Dimensions

Measure or verify:

• Inner diameter: 12 mm.
• Outer diameter: 28 mm.
• Width: 8 mm.

Step 4: Confirm the Equipment

Provide the following information:

• Machine brand.
• Machine series.
• Machine generation.
• Module number.
• Machine serial number.
• Axis position.
• Assembly name.
• Existing part number.

Step 5: Confirm the Bearing Arrangement

Ask the maintenance engineer whether the assembly uses:

• One bearing.
• Two individual bearings.
• A matched pair.
• Back-to-back arrangement.
• Face-to-face arrangement.
• Fixed-end support.
• Floating-end support.
• Specific preload or spacer configuration.

Step 6: Confirm the Required Condition

Available supply conditions may include:

The actual condition supplied must be clearly stated in the quotation. “Original,” “new,” “used,” and “replacement” should never be assumed from the model number alone.

Step 7: Provide Photos

Useful photos include:

• Bearing engraving.
• Original packaging label.
• FUJI parts label.
• Installed position.
• Ball-screw support assembly.
• Machine nameplate.
• Removed bearing from both sides.
• Spacer, collar, and locknut arrangement.

Step 8: Confirm Quantity

A parts diagram may show two H4209W bearings in the related Y-axis assembly, but the purchasing quantity should be confirmed according to the exact module and maintenance scope.

Ordering Information

Please provide the following details for a fast and accurate quotation:

Packaging and Shipping

Precision bearings require careful protection against impact, moisture, dust, and corrosion during transportation.

Standard Packaging Process

1. Bearing identification is confirmed.
2. The bearing is placed in protective inner packaging.
3. Moisture-resistant material is added when required.
4. The product is protected against movement inside the box.
5. The external label includes the part number and quantity.
6. The package is placed in a reinforced shipping carton.
7. Export documentation is prepared according to the order.

Available Shipping Options

• DHL express.
• FedEx express.
• UPS express.
• Air freight.
• Sea freight for consolidated orders.
• Customer-designated forwarder.
• Customer courier account.
• Combined shipment with other SMT spare parts.

Storage Recommendations

• Keep the bearing in its original protective packaging until installation.
• Store it in a clean and dry indoor area.
• Avoid exposure to condensation or corrosive chemicals.
• Do not place heavy products on the bearing package.
• Keep the product away from metal dust and machining debris.
• Do not open the packaging unnecessarily.
• Use clean gloves during inspection and installation.
• Rotate inventory according to the receiving date.
• Recheck the condition after long-term storage.
• Prevent direct contact with bare hands on precision surfaces.

FAQ

Q1: Is H4209W the same as NSK 7001ATYNDBMP5?

H4209W is the FUJI spare-part reference commonly associated with an NSK 7001AT-series precision bearing for NXT equipment. Some commercial records use 7001ATYNDBMP5, while a parts-list record shows 7001ATYDBC8P5. Please confirm the complete marking on the removed bearing before ordering.

Q2: What are the dimensions of the H4209W bearing?

The commonly documented dimensions are 12 mm inner diameter, 28 mm outer diameter, and 8 mm width. However, dimensions alone are not sufficient for replacement because precision class, contact design, matching arrangement, cage type, and preload-related suffixes must also be verified.

Q3: Where is this bearing used in a FUJI NXT machine?

Available NXT parts information identifies H4209W as a bearing in a Y-axis ball-screw-related assembly. The precise installation position can vary according to module and machine configuration, so buyers should provide the equipment model, module number, and assembly photo.

Q4: Can I use a standard 7001 bearing instead?

A standard bearing with the same dimensions should not be installed automatically. The original bearing may require a specific angular contact design, precision class, cage, internal configuration, matched arrangement, or preload. Always compare the complete suffix and application requirements.

Q5: What information is required before quotation?

Please send H4209W, the complete NSK bearing marking, required quantity, machine model, machine serial number, installed position, required condition, and clear photos. These details allow the supplier to verify compatibility and avoid delays caused by incomplete suffix information.

Contact Us

Looking for the FUJI H4209W NSK 7001AT precision bearing for an NXT Y-axis maintenance project?

Send us the bearing marking, machine model, required quantity, preferred condition, and delivery destination. Our team will check the available specification, stock status, packaging requirements, and shipping option before quotation.

SMT PARTS SUPPLY LTD. provides SMT machine spare parts, feeder components, bearings, motors, sensors, control boards, nozzles, filters, and maintenance solutions for electronics manufacturing customers worldwide.

We support:

• Fast part-number verification.
• Photo-based product confirmation.
• New and replacement condition options.
• Emergency maintenance requirements.
• Small-quantity and batch orders.
• Combined SMT spare-parts shipments.
• International express delivery.
• Technical communication before shipment.
• Protective export packaging.
• Long-term spare-parts sourcing support.

For accurate service, please include H4209W, 7001ATYNDBMP5 or the actual complete marking, 12 × 28 × 8 mm, and FUJI NXT Y-axis application in your inquiry.

Trademark and Compatibility Statement

FUJI, NXT, NSK, and related model names are trademarks or registered trademarks of their respective owners. They are used only to identify product compatibility and application. SMT PARTS SUPPLY LTD. is an independent spare-parts supplier and does not claim affiliation with the original equipment or bearing manufacturers unless specifically confirmed in writing.
