Created with Pixso. Yamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R Machines

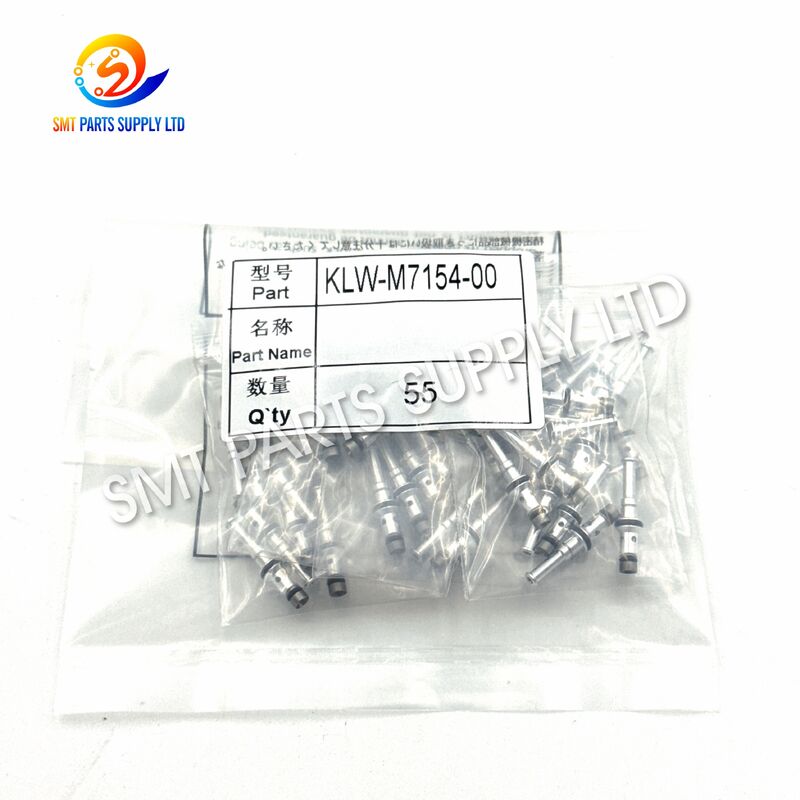

Yamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R Machines

Brand Name: Yamaha
Model Number: KLW-M7154-00
Detail Information
Place of Origin:
CHINA&JAPEN
Product Name:
BIT Copper-Core Vacuum Generator Solenoid Valve
Brand Reference:
Yamaha
Model:
KLW-M7154-00
Part Number:
KLW-M7154-00
Component Marking:
BIT
Product Category:
Yamaha SMT Cylinder And Valve Parts
Product Type:
Pneumatic Vacuum-control Component
Main Function:
Controls Nozzle Vacuum Suction And Release
Application:
SMT Component Pickup And Placement
Applicable Machines:
YSM10, YSM20, YSM20R
Installation Position:
Placement Head Or Pneumatic Vacuum Circuit
Structural Feature:
Copper-core Internal Structure
Working Medium:
Clean And Dry Compressed Air
Switching Type:
Solenoid-controlled Pneumatic Switching
Highlight:

Yamaha KLW-M7154-00 vacuum valve

,

BIT copper-core SMT valve

,

YSM10 YSM20 YSM20R pickup valve

Product Description
Yamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve YSM10 YSM20 YSM20R
Yamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R MachinesYamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R MachinesYamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R Machines

The Yamaha KLW-M7154-00 BIT copper-core vacuum generator solenoid valve is a compact pneumatic control component developed for compatible YSM10, YSM20, and YSM20R SMT placement machine applications. Installed within the machine vacuum or placement-head pneumatic system, it assists in controlling the suction and release cycles required for electronic component pickup and placement.

During production, the placement nozzle must generate vacuum quickly, hold each component securely during head movement, and release it accurately at the programmed PCB position. A contaminated, worn, leaking, or slow-response valve may cause unstable suction, missing-component alarms, delayed release, component drops, or repeated machine interruptions.

KLW-M7154-00 is suitable for preventive maintenance, urgent equipment repair, placement-head servicing, and spare-parts inventory. Before ordering, customers should compare the complete part number, BIT marking, connector, pneumatic-port arrangement, mounting dimensions, machine model, and original component photographs to ensure correct configuration.


Product Identification
Item Description
Brand Reference Yamaha
Part Number KLW-M7154-00
Component Marking BIT
Product Type Vacuum generator solenoid valve
Structural Feature Copper-core internal structure
Main Function Vacuum suction and release control
Machine Application SMT pick-and-place equipment
Applicable Models YSM10, YSM20, YSM20R
Installation Area Placement-head or pneumatic vacuum circuit
Product Category SMT machine cylinder and valve component
Working Medium Clean and dry compressed air
Replacement Method Original-position replacement after confirmation

Key Product Benefits
Benefit Value for SMT Production
Fast pneumatic response Supports rapid nozzle suction and component release
Stable vacuum control Helps reduce intermittent pickup failures
Compact structure Suitable for restricted placement-head installation areas
Copper-core design Supports repeated pneumatic switching cycles
Machine-focused configuration Simplifies replacement after correct model verification
Maintenance suitability Useful for repair, preventive service, and spare stock
Production reliability Helps minimize vacuum-related machine interruptions
Export-ready supply Suitable for international SMT factories and distributors

Cause

Vacuum pickup problems are common maintenance issues in SMT placement equipment. However, not every pickup fault is caused by a damaged nozzle. The vacuum generator valve, solenoid switching mechanism, pneumatic tubing, filters, connectors, sensors, and compressed-air quality can all influence the result.

When KLW-M7154-00 becomes contaminated, worn, restricted, electrically unstable, or mechanically slow, the placement nozzle may not receive the correct vacuum level at the required time.

Common Causes of Valve and Vacuum-System Problems
Cause Description Possible Production Effect
Internal contamination Dust, moisture, oil, or fine particles enter the air passage Weak or unstable vacuum
Valve wear Repeated high-speed switching causes mechanical deterioration Slow pneumatic response
Air leakage Loose tube, damaged seal, or cracked connector loses pressure Insufficient nozzle suction
Restricted airflow Blocked port, filter, tube, or internal passage reduces air volume Delayed vacuum generation
Damaged connector Loose pins or damaged wiring interrupt the control signal Intermittent valve operation
Poor air quality Wet or oily compressed air enters the pneumatic system Shortened valve service life
Incorrect installation Tubes or electrical connections are installed incorrectly Vacuum failure or continuous suction
Machine revision mismatch A similar-looking valve has different ports or specifications Installation or operating failure
Nozzle blockage Debris inside the nozzle reduces effective vacuum Pickup errors despite a normal valve
Parameter error Incorrect machine settings affect suction timing Delayed pickup or release
Typical Fault Symptoms

A vacuum generator solenoid valve should be inspected when the machine shows one or more of the following conditions:

  • Frequent missing-component alarms.
  • Reduced nozzle suction.
  • Components dropping during head movement.
  • Components remaining attached to the nozzle after placement.
  • Delayed component release.
  • Intermittent pickup performance.
  • Different vacuum performance between head positions.
  • Repeated vacuum or pneumatic alarms.
  • Abnormal air leakage noise.
  • Increased compressed-air consumption.
  • Production performance changing after extended operation.
  • Pickup failure continuing after nozzle cleaning.
  • Vacuum response becoming slower than normal.
  • Machine downtime caused by repeated manual resets.

Because several components can produce similar symptoms, technicians should perform a systematic inspection before replacing the valve.


Solution

When inspection confirms that the existing vacuum-control component is defective, replacing it with a correctly matched KLW-M7154-00 valve can help restore stable suction and release performance.

Recommended Troubleshooting Process
Step Inspection Action Purpose
1 Record the machine alarm and affected head position Identify the failure pattern
2 Inspect and clean the nozzle Eliminate simple nozzle blockage
3 Check the vacuum filter Confirm that airflow is not restricted
4 Inspect pneumatic tubes and joints Locate leakage, damage, or loose connections
5 Compare with a normal head position Determine whether the problem is localized
6 Check the valve connector and wiring Confirm a stable control signal
7 Inspect the original valve marking Verify KLW-M7154-00 and BIT identification
8 Compare ports and mounting dimensions Avoid installing an incorrect configuration
9 Replace the confirmed defective component Restore the pneumatic control circuit
10 Run pickup and placement tests Verify performance before production
Expected Benefits After Correct Replacement

A correctly selected and properly installed vacuum valve may help:

  • Restore stable nozzle suction.
  • Improve component pickup consistency.
  • Reduce missing-component errors.
  • Reduce component dropping during movement.
  • Improve suction-response speed.
  • Support accurate component release.
  • Minimize repeated machine stops.
  • Improve placement-head maintenance efficiency.
  • Reduce unnecessary nozzle replacement.
  • Improve overall line utilization.
  • Support consistent high-speed production.
  • Reduce emergency repair time.
  • Improve spare-parts maintenance planning.
  • Maintain stable placement quality across long production cycles.

Replacing the valve alone will not correct faults caused by blocked nozzles, damaged filters, leaking tubes, unstable compressed-air pressure, defective sensors, control-board problems, or incorrect machine settings. Complete system inspection remains essential.


Specifications
Specification Product Information
Product Name BIT Copper-Core Vacuum Generator Solenoid Valve
Brand Reference Yamaha
Part Number KLW-M7154-00
Component Code BIT
Product Classification Pneumatic vacuum-control component
Machine Type SMT pick-and-place machine
Applicable Equipment YSM10, YSM20, YSM20R
Primary Function Controls vacuum generation, suction, and release
Main Structural Feature Copper-core internal construction
Working Medium Filtered, clean, and dry compressed air
Installation Location Placement head or machine vacuum circuit
Mounting Method Machine-specific fixed installation
Connector Type Confirm according to the original component
Pneumatic Ports Confirm port number, size, and direction
Operating Voltage Confirm from the original label or equipment BOM
Operating Pressure Follow the machine pneumatic specification
Response Type Fast pneumatic switching
Maintenance Use Corrective repair and preventive replacement
Order Unit One piece
Packing Protective individual packing
Inspection Appearance and available functional testing
Compatibility Subject to machine configuration confirmation
Sales Region Europe, North America, and Southeast Asia
Specification Confirmation Notice

Similar vacuum components may have nearly identical external appearances while using different operating voltages, connectors, mounting brackets, air-port directions, flow characteristics, or internal structures.

Before placing an order, confirm all of the following:

  1. Complete part number: KLW-M7154-00.
  2. BIT body marking.
  3. Machine model.
  4. Placement-head type.
  5. Original connector shape.
  6. Connector-pin arrangement.
  7. Number of pneumatic ports.
  8. Port size and direction.
  9. Mounting-hole position.
  10. Overall product dimensions.
  11. Cable or wire direction.
  12. Additional bracket configuration.
  13. Machine serial number when available.
  14. Photographs of the removed component.
  15. Required product condition and quantity.

Machine Compatibility Reference
Machine Model Typical Application Confirmation Requirement
YSM10 Placement-head vacuum suction and release control Confirm machine revision and original valve
YSM20 High-speed SMT placement pneumatic system Confirm head type, connector, and ports
YSM20R Placement-head vacuum-control maintenance Confirm complete part number and installation position

Compatibility information is provided as a purchasing reference. Machine revisions, head configurations, regional specifications, and previous modifications may create differences between equipment using the same model name.


Application
SMT Component Pickup

The valve supports the pneumatic sequence required for the nozzle to pick electronic components from tape feeders, trays, stick feeders, or other component-supply systems.

SMT Component Placement

After pickup, stable vacuum holds the component while the placement head moves. At the programmed PCB coordinate, the valve helps release the vacuum so the component can be placed onto the solder-paste pad.

Placement-Head Maintenance

KLW-M7154-00 can be used when servicing compatible placement heads experiencing weak suction, delayed release, air leakage, intermittent vacuum, or repeated pickup alarms.

Preventive Maintenance Programs

Factories operating multiple YSM machines can stock confirmed valves as preventive-maintenance parts. Planned replacement may reduce the risk of unexpected production stoppages.

Emergency Equipment Repair

For production lines where machine downtime directly affects delivery schedules, keeping a correctly identified spare valve can shorten repair time.

High-Mix PCB Assembly

High-mix production frequently changes component size, shape, weight, and packaging. Stable vacuum response helps maintain reliable pickup performance across different products.

EMS Manufacturing

Electronics manufacturing service providers require flexible placement equipment for frequent production changeovers. Reliable pneumatic components support stable output and reduce unexpected interruptions.

Consumer Electronics

The component may support SMT lines producing control boards for household appliances, communication products, displays, smart devices, and other consumer electronics.

Automotive Electronics

Automotive PCB production requires consistent process control and traceable maintenance. Correct part identification and post-replacement testing help support organized equipment-management procedures.

Industrial Electronics

Suitable applications include SMT production for power supplies, controllers, automation modules, industrial sensors, instrumentation, security equipment, and communication systems.

SMT Equipment Service Companies

Maintenance companies can use KLW-M7154-00 for customer machine repair, placement-head servicing, equipment refurbishment, and spare-parts support.

International Spare-Parts Distribution

SMT parts distributors can stock this model for customers in Europe, North America, Southeast Asia, and other electronics-manufacturing markets.


Application by Customer Type
Customer Type Typical Requirement Recommended Purchasing Focus
EMS factory Fast recovery from vacuum alarms Correct compatibility and delivery time
PCB assembly plant Preventive maintenance inventory Stable supply and inspection
SMT service company Repair of customer placement equipment Technical identification support
Equipment refurbisher Placement-head restoration Physical condition and function
Spare-parts distributor Regional inventory Clear labeling and protective packing
Multinational manufacturer Standardized maintenance stock Repeatable quality and documentation
Technical training center Pneumatic-system demonstration Model and condition confirmation

Yamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R MachinesYamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R MachinesYamaha KLW-M7154-00 BIT Copper-Core Vacuum Valve for SMT Component Pickup on YSM10 YSM20 YSM20R Machines
How It Works
1. Compressed-Air Input

Clean and dry compressed air enters the machine pneumatic circuit. The air should pass through the correct filtration and regulation system before reaching the vacuum-control component.

2. Machine Control Command

The placement machine sends an electrical command according to the programmed pickup and placement sequence. The valve must respond at the correct moment.

3. Solenoid Valve Switching

After receiving the control signal, the solenoid mechanism changes the internal airflow path. This switching process controls the vacuum-generation circuit.

4. Vacuum Generation

Airflow through the vacuum system creates negative pressure at the placement nozzle. The nozzle contacts the component and holds it through suction.

5. Component Pickup Verification

The machine may use pressure or vacuum sensing to confirm that the component has been picked correctly. Unstable valve performance can result in an unsuccessful confirmation.

6. Component Transportation

The placement head moves the component from its supply position toward the PCB. Stable vacuum is required to prevent the component from falling, shifting, rotating, or becoming incorrectly aligned.

7. Vacuum Release

At the programmed placement coordinate, the machine changes the valve signal. The vacuum is released so the component separates from the nozzle.

8. Repeated High-Speed Operation

This process repeats continuously throughout production. Even a small response delay can affect thousands of placement cycles, making valve condition important for consistent manufacturing performance.


Airflow Sequence Table
Production Stage Valve Action Nozzle Condition Expected Result
Head approaches component Prepares suction circuit Nozzle positioned above component Ready for pickup
Nozzle contacts component Vacuum is activated Negative pressure develops Component attaches to nozzle
Head rises Vacuum remains stable Component is securely held Successful pickup
Head moves to PCB Valve maintains suction Component remains attached Stable transportation
Nozzle reaches placement point Vacuum is released Suction decreases Component separates
Head moves away Valve resets Nozzle is clear Ready for the next cycle

How To Choose

Correct selection reduces installation risk, production delays, and unnecessary returns.

Product Selection Checklist
Selection Item Information to Confirm Reason
Brand reference Yamaha machine application Identifies the equipment platform
Complete part number KLW-M7154-00 Prevents confusion with similar models
Body marking BIT Supports physical identification
Machine model YSM10, YSM20, or YSM20R Confirms general application
Head configuration Machine-specific placement-head type Different heads may use different components
Connector Shape, pins, locking method, and direction Prevents electrical incompatibility
Pneumatic ports Quantity, diameter, and direction Prevents incorrect tube installation
Mounting holes Spacing and orientation Ensures correct mechanical installation
Overall dimensions Compare with the removed component Prevents interference
Operating specification Voltage and pressure requirement Protects the machine and valve
Product condition New, original, used, or compatible Avoids quotation misunderstanding
Quantity Immediate requirement and spare stock Supports inventory planning
Destination Country and postal code Supports freight calculation
Inspection requirement Photos, video, or test information Aligns quality expectations
Recommended Inquiry Information

For an accurate quotation, provide:

  • Part number: KLW-M7154-00.
  • Machine model: YSM10, YSM20, or YSM20R.
  • Placement-head type when available.
  • Required quantity.
  • Required product condition.
  • Destination country and postal code.
  • Photographs of the original valve.
  • Clear image of the part-number label.
  • Connector and pneumatic-port photographs.
  • Any urgent delivery requirement.
  • Requested inspection method.
  • Additional SMT parts required in the same shipment.
When Photographs Are Especially Important

Photographs should be supplied when:

  • The original label is damaged.
  • Only part of the model number is visible.
  • The machine has been modified.
  • The old component has an additional bracket.
  • Connector orientation appears different.
  • The buyer is comparing several similar valves.
  • The machine was previously repaired with a substitute part.
  • The equipment serial number is unavailable.
  • The required operating voltage is uncertain.
  • The customer needs confirmation before a bulk order.

Installation Recommendations

Installation should be completed by trained SMT maintenance personnel.

Before Installation
  • Stop the machine according to approved procedures.
  • Disconnect the main power supply.
  • Isolate the compressed-air supply.
  • Release remaining pneumatic pressure.
  • Record the original valve position.
  • Photograph all tubes and connectors.
  • Confirm the replacement part number.
  • Prepare clean and suitable tools.
  • Protect open pneumatic ports from contamination.
  • Check that the replacement configuration matches the removed component.
During Installation
  • Do not pull or twist electrical wires.
  • Do not force the connector into position.
  • Confirm the correct tube-to-port connection.
  • Keep air passages free from dust and oil.
  • Align mounting holes before tightening screws.
  • Tighten fasteners evenly.
  • Avoid excessive tightening torque.
  • Do not bend or pinch pneumatic tubing.
  • Confirm that the valve does not interfere with moving parts.
  • Maintain the original installation direction.
After Installation
  • Restore the compressed-air supply gradually.
  • Check all joints for leakage.
  • Restore power and check the control signal.
  • Test valve switching.
  • Check nozzle vacuum performance.
  • Run component-pickup verification.
  • Confirm normal component release.
  • Monitor the machine for alarms.
  • Complete a controlled trial-production run.
  • Record the replacement date and head position.

Maintenance Recommendations
Maintenance Item Recommended Action
Compressed air Maintain clean, dry, and stable air
Main filter Inspect and replace according to factory conditions
Head filter Check for contamination or blockage
Pneumatic tubing Inspect for cracks, aging, bending, and loose joints
Nozzle Clean with approved tools and procedures
Valve exterior Keep free from oil, adhesive, and dust
Connector Check pins, locking tab, and cable condition
Mounting screws Confirm secure and even installation
Air leakage Test after each maintenance operation
Spare storage Keep sealed in a dry and clean environment
Maintenance records Record replacement dates and failure symptoms
Removed components Retain for comparison and failure analysis

Do not insert sharp metal objects into valve ports. Do not use unsuitable cleaning chemicals. Unauthorized disassembly may damage internal seals, coils, springs, or precision air passages.


Quality Inspection

Available inspection procedures may vary depending on the quoted product condition.

Inspection Item Inspection Content
Part-number inspection Confirm KLW-M7154-00 identification
Marking inspection Confirm visible BIT marking
Appearance inspection Check body, ports, connector, and mounting points
Damage inspection Check for cracks, deformation, corrosion, or broken parts
Port inspection Confirm air passages are clean and protected
Connector inspection Check housing, pins, and locking structure
Dimension comparison Compare key dimensions when required
Configuration inspection Confirm port and connector directions
Function inspection Perform available switching or pneumatic test
Photo confirmation Provide product photographs when agreed
Packing inspection Confirm protective individual packaging
Quantity inspection Confirm the ordered quantity before dispatch

Customers with specific inspection standards should state their requirements before order confirmation.


Packing and International Delivery

The valve body, connector, and pneumatic ports require appropriate protection during international transportation.

Recommended Packing Process
  1. Check the product identification.
  2. Protect exposed pneumatic ports.
  3. Place the component in a clean protective bag.
  4. Add antistatic protection when required.
  5. Wrap the valve with cushioning material.
  6. Avoid direct pressure on the connector.
  7. Place the product in a strong inner box.
  8. Add shock-resistant material around the inner box.
  9. Attach a clear part-number label.
  10. Seal the outer carton securely.

Shipping options can be arranged according to order quantity, destination, delivery urgency, package size, and customer preference.


Why Purchase This Product
Accurate Part Identification

The complete KLW-M7154-00 model is used for inquiry review, inspection, packing, and delivery.

Compatibility Confirmation Support

Customers can submit machine information, original-component photographs, connector details, pneumatic-port arrangements, and dimensions for comparison.

Flexible Order Quantity

Suitable for one-piece emergency replacement, regular maintenance demand, or batch inventory purchasing.

Maintenance-Focused Supply

The product is intended for SMT equipment maintenance, placement-head servicing, vacuum-system repair, and spare-parts management.

Protective Export Packing

Individual protection helps reduce the risk of connector, port, and body damage during international transportation.

Combined SMT Parts Supply

Customers may combine the valve inquiry with requirements for feeders, nozzles, filters, sensors, motors, belts, cylinders, cables, boards, and other SMT machine parts.


FAQ
1. What is the function of KLW-M7154-00?

KLW-M7154-00 is used in the pneumatic vacuum-control system of compatible SMT placement machines. It helps control nozzle suction and release during electronic component pickup, transportation, and placement.

2. Which machine models can use this vacuum valve?

The part is commonly selected for YSM10, YSM20, and YSM20R applications. However, machine revisions and placement-head configurations may differ, so the original valve, connector, ports, dimensions, and machine information should be confirmed.

3. How can I confirm compatibility before ordering?

Provide the complete part number, machine model, head type, original-part label, connector photo, pneumatic-port photo, installation-position photo, required quantity, and delivery destination. Physical comparison is strongly recommended.

4. What symptoms may indicate that the valve requires replacement?

Possible symptoms include weak suction, intermittent pickup errors, component drops, delayed release, continuous vacuum, air leakage, abnormal pneumatic noise, repeated vacuum alarms, or production interruptions after the nozzle and filters have been inspected.

5. Can a similar-looking vacuum valve replace KLW-M7154-00?

A similar appearance does not guarantee compatibility. Different models may use different voltages, airflow characteristics, connectors, mounting dimensions, pneumatic ports, brackets, or internal structures. Always confirm the complete part number and physical configuration.


Contact Us

Contact our sales team for current availability, pricing, product condition, inspection options, packing details, and international delivery arrangements.

For a fast and accurate quotation, please provide:

  • Product model: KLW-M7154-00.
  • Machine model and head configuration.
  • Required quantity.
  • Required product condition.
  • Destination country and postal code.
  • Clear photographs of the original component.
  • Connector and pneumatic-port details.
  • Expected delivery schedule.
  • Required inspection documentation.
  • Other SMT machine parts needed in the same order.

Our team will review your information and provide an appropriate supply proposal based on the confirmed model, configuration, quantity, and delivery requirements.
