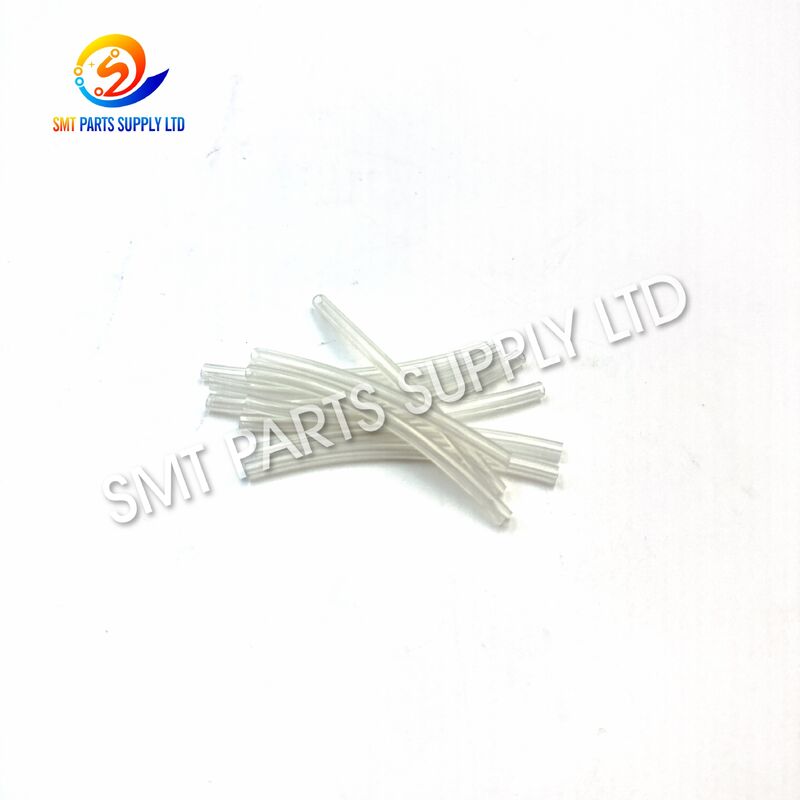

Panasonic N610144919AB 64mm Head Vacuum Tube for CM402 CM602 NPM 12-Head

The Panasonic N610144919AB 64mm Head Vacuum Tube is a precision pneumatic replacement component used in compatible Panasonic CM402, CM602, and NPM 12-head SMT placement systems. Installed inside the placement-head vacuum circuit, it provides a controlled pathway for negative pressure between related pneumatic components and the nozzle-side pickup system.

During SMT placement, stable vacuum is essential for reliable component pickup, transport, alignment, and placement. A worn, cracked, hardened, pinched, or leaking tube can reduce effective suction and may contribute to intermittent pickup errors or component drops.

Replacing a deteriorated tube with the correct N610144919AB 64mm specification helps restore the condition of the head vacuum circuit. This product is suitable for SMT factories, EMS manufacturers, equipment maintenance departments, placement-head repair centers, and spare-parts distributors.

Basic Product Information

Cause – Why the Head Vacuum Tube Needs Replacement

The 12-head placement unit performs continuous high-speed pickup and placement cycles. Vacuum tubing inside the head is exposed to repeated movement, vibration, bending, pneumatic pressure changes, and long operating hours.

Over time, these conditions may affect tube performance.

Because the tube forms part of the vacuum path, even a small leak can reduce suction efficiency.

For this reason, the N610144919AB should be inspected whenever the 12-head unit develops unstable vacuum behavior.

Common Symptoms Requiring Inspection

Maintenance personnel may need to check the vacuum tube and related components when the machine shows:

• Weak component pickup
• Intermittent pickup failure
• Components dropping during head movement
• Low or unstable vacuum
• Vacuum-related alarms
• Cracks on the tube surface
• Hardened or brittle tubing
• Flattened tube sections
• Loose connections
• Abnormal pneumatic response

These symptoms can also be caused by other components, including nozzles, nozzle holders, solenoid valves, filters, fittings, sensors, or the vacuum generator.

The full pneumatic circuit should therefore be inspected before replacement.

Solution – Replace the Worn N610144919AB Vacuum Tube

When inspection confirms that the original tube is cracked, aged, leaking, contaminated, or restricted, replacement with the correct Panasonic N610144919AB 64mm Head Vacuum Tube helps restore the intended vacuum path.

Correct installation supports consistent negative-pressure transfer to the nozzle-side system during component handling.

Maintenance Benefits

Specifications

Recommended Ordering Identification

For accurate purchasing, use:

Panasonic + N610144919AB + 64mm + CM402/CM602/NPM + 12-Head

Machine and head configurations can differ. Always verify the original installed part number before placing an order.

Application

The N610144919AB 64mm Head Vacuum Tube is mainly used for servicing the placement-head vacuum system on compatible Panasonic SMT machines.

Typical applications include:

• CM402 head maintenance
• CM602 12-head repair
• NPM placement-head servicing
• Vacuum-line replacement
• Preventive head maintenance
• Pneumatic troubleshooting
• Placement-head refurbishment
• SMT spare-parts inventory

Typical Manufacturing Industries

This replacement tube can support machines used in:

• Consumer electronics
• Automotive electronics
• Communication equipment
• Industrial electronics
• Power supply manufacturing
• LED products
• Computer hardware
• Smart home devices
• Medical electronics
• General PCB assembly

The final application may vary, but the tube's role remains the same: maintaining a suitable pneumatic pathway within the placement head.

Role of the Vacuum Circuit in SMT Placement

The vacuum system is responsible for creating the suction required to hold a component on the nozzle during movement.

Typical related components include:

The N610144919AB serves as part of this vacuum-transfer pathway.

It does not generate vacuum itself. Instead, it helps transmit the negative pressure generated by the system to the required area of the placement head.

How It Works

1. Pickup Positioning

The machine moves the selected nozzle above the component supplied by the feeder or tray.

2. Vacuum Activation

The pneumatic system activates vacuum according to the programmed pickup cycle.

3. Negative Pressure Transfer

Vacuum travels through the pneumatic circuit.

The N610144919AB 64mm vacuum tube forms part of this path.

4. Component Pickup

Negative pressure reaches the nozzle area, allowing the nozzle to hold the electronic component.

5. Component Transfer

The head moves while vacuum remains active to retain the component.

6. Placement

The machine positions the component above the programmed PCB location.

7. Vacuum Release

Vacuum is switched off or released to separate the component from the nozzle.

This process repeats continuously during production.

Stable tubing condition helps ensure that the pneumatic response remains consistent throughout these repeated cycles.

Why the 64mm Specification Matters

Vacuum tubing should not be selected only by visual similarity.

Tube length affects routing inside the placement head.

A tube that is too short may create:

• Excessive tension
• Poor fitting engagement
• Abnormal bending
• Premature wear

A tube that is too long may cause:

• Unwanted loops
• Contact with moving parts
• Pinching
• Restricted installation space

The 64mm specification should therefore be confirmed along with the exact part number.

How To Choose

1. Confirm the Part Number

Required part number:

N610144919AB

This is the primary identification reference.

2. Confirm the Length

Required specification:

64mm

Length should be checked carefully before ordering.

3. Confirm the Head Type

This product is associated with:

12-Head application

Different head configurations may use different tubes.

4. Confirm the Machine Model

Typical application includes:

CM402 / CM602 / NPM

Check the installed machine and head configuration before purchase.

5. Compare the Original Tube

Confirm:

• Part number
• Tube length
• Diameter
• Connection points
• Tube routing
• Machine model
• Head configuration

A photo of the original installed component can help with verification.

Recommended Inquiry Information

Providing complete information helps reduce incorrect part selection.

Maintenance Recommendations

Check Tube Surface

Inspect for:

• Cracks
• Hardening
• Surface wear
• Flattening
• Abnormal bending

Check Tube Ends

Tube ends should be inspected for wear or poor connection with fittings.

Avoid Sharp Bends

Improper routing can restrict the internal airflow path.

Keep the Pneumatic Circuit Clean

Dust, oil, and debris should be prevented from entering vacuum lines.

Replace Damaged Parts Promptly

If leakage or deterioration is confirmed, replacement is generally preferable to temporary repair.

Troubleshooting Reference

A vacuum-related production problem should always be diagnosed systematically rather than assuming that one component is responsible.

Comparison With Related Panasonic Vacuum Tubes

These vacuum tubes perform similar pneumatic functions but are intended for different head configurations.

They should not be treated as interchangeable unless compatibility is specifically confirmed.

Spare-Part Inventory Planning

For factories operating multiple Panasonic placement machines, maintaining a stock of commonly used pneumatic parts can reduce maintenance delays.

A small component such as a vacuum tube can stop or reduce production efficiency if the correct replacement is not available when required.

Product Inspection Before Shipment

Typical inspection points include:

• Part-number verification
• 64mm length confirmation
• Tube surface inspection
• Connection-end inspection
• Appearance checking
• Quantity confirmation
• Packaging inspection

Clear labeling is especially useful when several different Panasonic head parts are ordered together.

FAQ

Q1: What is Panasonic N610144919AB used for?

N610144919AB is a 64mm head vacuum tube used in compatible Panasonic CM402, CM602, and NPM 12-head placement applications. It transfers negative pressure within the placement-head pneumatic system.

Q2: Is N610144919AB a nozzle?

No. N610144919AB is a vacuum tube, not a placement nozzle. It forms part of the pneumatic circuit that supplies vacuum to the nozzle-side pickup system.

Q3: Can N610144919AB be used for a 16-head unit?

It should not be assumed to be interchangeable. N610144919AB is identified for the 12-head application, while the 16-head configuration uses a different vacuum tube specification such as N610161010AA.

Q4: Why is the 64mm length important?

Correct length helps maintain proper routing and prevents excessive tension, looping, bending, or interference inside the placement-head assembly.

Q5: What information should I provide before ordering?

Provide the N610144919AB part number, 64mm specification, machine model, 12-head configuration, required quantity, and an original part photo whenever available.

Contact Us

Need Panasonic N610144919AB 64mm Head Vacuum Tube for CM402, CM602, or NPM 12-head maintenance?

Send us your part number, machine model, head configuration, required quantity, and reference photo for product checking and quotation.

We support replacement requirements, planned maintenance, placement-head repair, machine refurbishment, and bulk SMT spare-parts purchasing.

Contact us for current price, availability, lead time, and quotation for N610144919AB and related Panasonic SMT machine parts.
