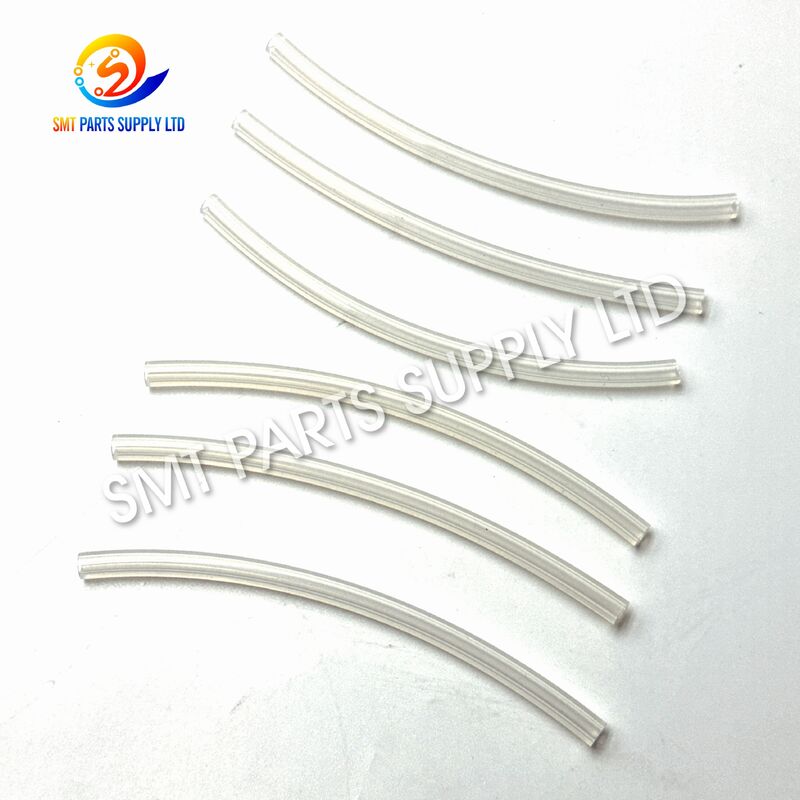

Panasonic KXF0DS4AA00 120mm Head Vacuum Tube for CM402 NPM 3-Head

The Panasonic KXF0DS4AA00 120mm Head Vacuum Tube is a replacement pneumatic component designed for Panasonic CM402 and NPM 3-head SMT placement applications. Installed in the placement-head vacuum circuit, the tube transfers vacuum pressure between related pneumatic components and the nozzle-side pickup system, helping the head create the suction required to hold electronic components during pickup, movement, and placement.

Vacuum performance is critical in high-speed SMT production. Aging, cracking, deformation, contamination, or leakage in a head vacuum tube may reduce effective suction and contribute to unstable pickup performance. Replacing a deteriorated tube with the correct KXF0DS4AA00 specification helps restore the condition of the vacuum circuit.

This 120mm vacuum tube is suitable for placement-head repair, scheduled maintenance, machine refurbishment, and spare-parts stocking in electronics manufacturing environments.

Basic Product Information

Cause – Why the Head Vacuum Tube Requires Replacement

The placement head performs thousands of repetitive pickup and placement cycles during normal SMT production.

The vacuum tube works continuously as part of the pneumatic circuit. Repeated machine movement, bending, pressure changes, environmental contamination, and long production hours can gradually affect the condition of the tube.

Common causes of deterioration include:

A small leak in a vacuum line can have a greater effect than its physical size suggests because the placement head depends on stable negative pressure for component handling.

Typical Symptoms of Vacuum Tube Problems

Maintenance personnel may inspect the KXF0DS4AA00 and related vacuum circuit if the machine shows symptoms such as:

• Weak component pickup
• Intermittent pickup failure
• Components dropping during head movement
• Unstable vacuum level
• Visible tube cracks
• Tube hardening or deformation
• Loose tube connection
• Restricted vacuum airflow
• Repeated pickup alarms
• Vacuum performance changing between cycles

These symptoms can also originate from nozzles, filters, valves, fittings, sensors, vacuum generators, or other pneumatic parts.

The complete vacuum circuit should therefore be checked before deciding which component requires replacement.

Solution – Replace the Worn KXF0DS4AA00 Vacuum Tube

When inspection confirms deterioration or leakage in the original tube, replacing it with the correct KXF0DS4AA00 120mm Head Vacuum Tube helps restore the pneumatic connection within the placement head.

A properly installed tube supports consistent vacuum transfer and allows the nozzle system to perform its pickup function under the intended machine operating conditions.

Maintenance Benefits

Specifications

Recommended Identification

For accurate purchasing, use the complete identification:

Panasonic + KXF0DS4AA00 + 120mm + CM402/NPM + 3-Head

Machine and head configurations may differ. Buyers should confirm the original part number and installed configuration before ordering.

Application

The KXF0DS4AA00 Head Vacuum Tube is intended for the vacuum system in compatible Panasonic placement-head applications.

It can be used for:

• Placement-head maintenance
• Vacuum line repair
• Damaged tube replacement
• Preventive maintenance
• Head-unit refurbishment
• Production-line spare inventory
• Used machine servicing
• SMT equipment overhaul

Typical Production Industries

This vacuum tube may be used on placement equipment operating in manufacturing environments such as:

• Consumer electronics
• Automotive electronics
• Communication equipment
• Industrial electronics
• LED products
• Power supply assemblies
• Computer hardware
• Smart appliances
• Control boards
• General PCB assembly

Its purpose remains the same across these applications: maintaining the vacuum-air path required for reliable component handling.

Role of the Vacuum System in SMT Placement

During placement, a nozzle must pick a component from the feeder and securely hold it while the head moves toward the PCB.

The process normally depends on several related components:

The KXF0DS4AA00 vacuum tube forms part of this pneumatic path.

It does not generate vacuum itself. Its role is to provide a suitable air passage between related components within the placement-head system.

How It Works

The KXF0DS4AA00 works together with the machine's vacuum-generation and nozzle systems.

1. Vacuum Generation

The machine's pneumatic system creates negative pressure when a component pickup cycle begins.

2. Vacuum Transmission

The vacuum pressure travels through the connected pneumatic circuit.

The KXF0DS4AA00 head vacuum tube provides part of this airflow pathway.

3. Nozzle Suction

Negative pressure reaches the nozzle assembly, generating suction at the nozzle tip.

4. Component Pickup

The nozzle contacts the electronic component and holds it through vacuum force.

5. Head Movement

The placement head moves the component toward the programmed PCB position.

6. Component Placement

Vacuum is released or switched according to the machine cycle, allowing the component to be placed onto the PCB.

7. Repeated Production

The process repeats continuously during high-speed placement operation.

Because the cycle occurs rapidly and repeatedly, the vacuum line must remain free from cracks, leaks, restrictions, and improper connections.

Why Vacuum Tube Condition Matters

A tube can appear visually acceptable while still having small areas of aging or deformation.

Problems may occur when:

• The tube wall becomes hard
• Small cracks develop near the ends
• Connection points become loose
• The tube becomes pinched
• Internal contamination restricts airflow
• The tube bends incorrectly after maintenance

These conditions can reduce vacuum transfer efficiency.

For this reason, the tube should be inspected whenever the placement head shows unexplained pickup instability.

How To Choose

Selecting the correct SMT pneumatic component requires more than checking general appearance.

1. Confirm the Part Number

The required part number is:

KXF0DS4AA00

Similar vacuum tubes may have different dimensions or applications.

2. Confirm the Tube Length

This specification is:

120mm

Length is important because incorrect tubing may produce improper routing, excessive bending, or installation tension.

3. Confirm the Machine Model

Applicable equipment includes:

CM402 / NPM

Always check the actual installed machine and head configuration.

4. Confirm the Head Application

The requested configuration is:

3-Head

This detail should be included when sending an inquiry because different head configurations can use different pneumatic parts.

5. Compare With the Original Part

Before purchasing, compare:

• Part number
• Tube length
• Connection position
• Tube routing
• Diameter
• Existing machine model
• Placement-head configuration

A clear photo of the original part is useful when compatibility confirmation is required.

Information Recommended for Inquiry

Providing complete information can significantly reduce part-identification errors.

Maintenance Recommendations

Regular Visual Inspection

Check the vacuum tube for:

• Cracks
• Hardening
• Flattening
• Surface wear
• Loose connections
• Abnormal bending
• Contamination

Check Connection Points

Tube ends and fittings are common inspection areas because repeated maintenance can create wear around connection positions.

Avoid Sharp Bends

Improper tube routing may restrict airflow or create premature mechanical fatigue.

Keep the Vacuum Circuit Clean

Dust, oil, or contamination entering the pneumatic pathway can influence vacuum performance.

Replace Damaged Tubes Promptly

If leakage or physical deterioration is confirmed, replacement is generally preferable to temporary repair.

Troubleshooting Reference

Do not assume every pickup problem is caused by the vacuum tube. Accurate troubleshooting should cover the complete head pneumatic system.

Spare-Part Inventory Planning

For factories operating Panasonic SMT equipment, keeping commonly used head pneumatic components available can help reduce maintenance delays.

Small pneumatic components can be useful items to keep in maintenance inventory because replacement may otherwise be delayed while waiting for a specific part.

Product Inspection Before Shipment

Typical inspection points for KXF0DS4AA00 may include:

• Part-number confirmation
• Length confirmation
• Appearance inspection
• Tube surface condition
• Connection-end condition
• Quantity verification
• Packaging inspection

When ordering multiple Panasonic head parts together, clear part-number labeling can help simplify warehouse receiving and maintenance management.

FAQ

Q1: What is Panasonic KXF0DS4AA00 used for?

KXF0DS4AA00 is a 120mm head vacuum tube used in compatible Panasonic CM402 and NPM 3-head placement applications. It transfers vacuum pressure within the placement-head pneumatic circuit to support component pickup.

Q2: Is KXF0DS4AA00 a placement nozzle?

No. KXF0DS4AA00 is a head vacuum tube, not a nozzle. It belongs to the vacuum/pneumatic system inside the placement-head assembly.

Q3: Why should a damaged vacuum tube be replaced?

Cracks, hardening, deformation, or loose connections can cause vacuum leakage or restricted airflow. This may contribute to weak or unstable component pickup during production.

Q4: How can I confirm whether KXF0DS4AA00 fits my machine?

Confirm the KXF0DS4AA00 part number, 120mm specification, machine model, and 3-head configuration. Providing a clear photo of the original tube and installation area can help with verification.

Q5: Can this vacuum tube be ordered with other Panasonic head parts?

Yes. KXF0DS4AA00 can be supplied together with other placement-head pneumatic and mechanical spare parts. Send your complete part-number list, machine models, quantities, and reference photos for checking and quotation.

Contact Us

Need Panasonic KXF0DS4AA00 120mm Head Vacuum Tube for CM402 or NPM 3-head maintenance?

Send us your part number, machine model, head configuration, required quantity, and reference photo for accurate product checking.

We support replacement requirements, scheduled maintenance, SMT head repair projects, and bulk spare-parts purchasing.

Contact us for price, stock availability, lead time, and quotation for KXF0DS4AA00 and related Panasonic SMT machine parts.
