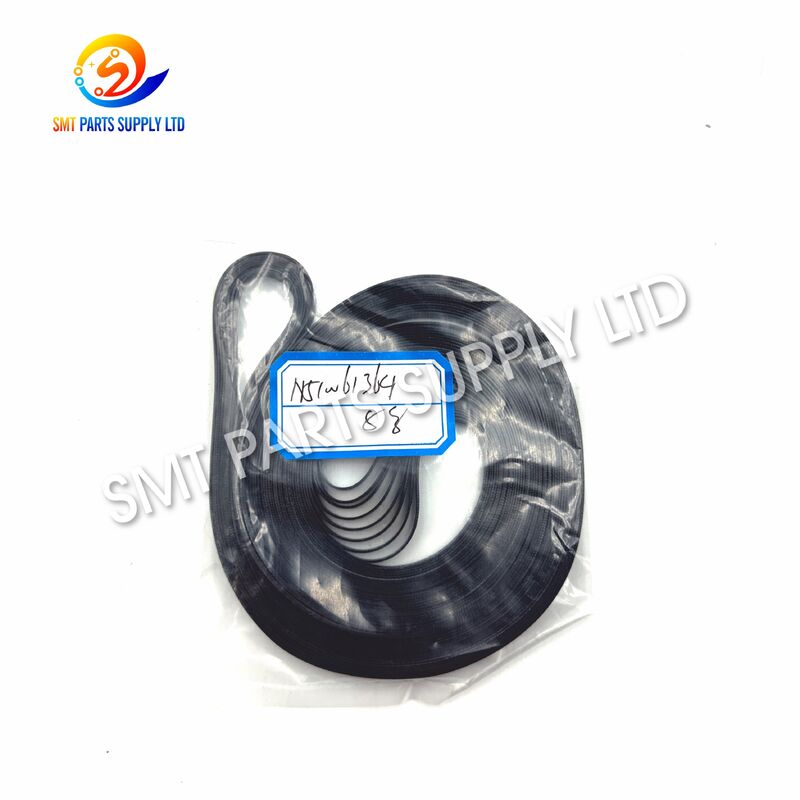

Panasonic N510061364AA 1282.5 × 5.5 × 0.65mm NPM-W Compatible SMT Conveyor Belt for PCB Transport

The Panasonic N510061364AA conveyor belt is a machine-specific flat belt used in the PCB transport system of NPM-W pick-and-place equipment. With a nominal specification of 1282.5 × 5.5 × 0.65 mm, it is designed to move printed circuit boards smoothly through the production machine while maintaining stable tracking and controlled transfer.

A properly operating transport belt is essential for reliable PCB loading, positioning, transfer, and unloading. Belt wear, surface contamination, incorrect tension, or dimensional mismatch can cause unstable board movement and interrupt automated production.

This replacement belt is suitable for preventive maintenance, conveyor restoration, emergency repair, and spare-parts inventory. Buyers should confirm the part number, machine model, belt dimensions, installation position, and required quantity before placing an order. Photos of the existing belt or machine label are recommended for accurate matching.

SMT conveyor belts operate continuously during production. They are repeatedly exposed to roller pressure, guide contact, machine vibration, dust, flux residue, temperature changes, and long operating cycles. Over time, these conditions may affect belt surface condition, flexibility, tracking accuracy, and dimensional stability.

Even when the belt remains visually complete, its working performance may decline. A stretched or polished belt may slip under load. A damaged belt edge may move toward the conveyor guide. Surface contamination can reduce friction and cause unstable PCB transfer.

Replacing the belt before complete failure can reduce unexpected production interruptions and help protect nearby conveyor components.

The N510061364AA conveyor belt provides a practical replacement solution for restoring the PCB transport function of compatible NPM-W equipment. Correct belt selection helps the conveyor system move boards at a stable speed while reducing slipping, vibration, and tracking deviation.

The belt should be installed only after confirming the machine model and conveyor position. A maintenance technician should also inspect the rollers, bearings, tension mechanism, guides, sensors, and surrounding transport components. Installing a new belt without correcting the original cause of wear may shorten the service life of the replacement.

• Irregular PCB transport through the placement machine.
• Reduced belt traction caused by surface wear.
• Belt cracking, edge damage, stretching, or deformation.
• Frequent conveyor adjustment during production.
• Unstable transfer between connected SMT machines.
• Production stoppages caused by a deteriorated transport belt.
• Increased maintenance requirements on an aging conveyor system.
• Emergency replacement after unexpected belt damage.
• Preparation of critical spare-parts inventory.
• Scheduled refurbishment of an NPM-W production line.

The correct part number is the first matching condition, but it should not be the only condition. Belt dimensions, machine generation, conveyor position, previous maintenance history, and configuration differences should also be checked.

For the most reliable order confirmation, provide:

Before purchasing, verify that all important identification points correspond with the required part:

A complete inquiry can be written as follows:

We require N510061364AA flat conveyor belts for an NPM-W pick-and-place machine. The required nominal dimension is 1282.5 × 5.5 × 0.65 mm. Please confirm availability, condition, quantity, delivery time, packaging, and shipping cost.

The N510061364AA belt is used in the PCB conveyor system of NPM-W pick-and-place machines. Its purpose is to support controlled board movement through the machine during automated SMT production.

The belt may be installed as part of the board-loading, internal-transfer, or discharge transport mechanism, depending on the machine configuration. The exact installation location should be verified from the removed part and machine documentation.

• Replacing a belt with visible cracks or worn edges.
• Correcting repeated belt slipping during PCB transfer.
• Preparing the machine for a major production order.
• Refurbishing a used NPM-W machine.
• Restoring an idle machine before returning it to production.
• Building a spare-parts kit for critical SMT lines.
• Replacing belts during annual maintenance.
• Investigating repeated board-transfer alarms.
• Improving transport stability after long-term operation.
• Repairing damage caused by a jammed or misaligned PCB.

The conveyor belt runs around the machine’s transport rollers or pulleys. A drive mechanism rotates the conveyor system, and friction between the belt and the PCB edge or supporting transport surface moves the board through the machine.

During normal operation, the conveyor must maintain suitable tension, alignment, speed, and surface contact. Sensors detect the PCB as it enters or reaches a specified position. The machine then controls board movement according to the placement sequence.

A correctly installed belt supports predictable PCB arrival at the required processing position. If the belt slips or moves irregularly, the PCB may not reach the sensor or stop position at the expected time.

The belt requires suitable tension to transmit movement without slipping. Excessively low tension may cause unstable transfer. Excessively high tension may place unnecessary load on rollers, bearings, and drive components.

The belt should run centrally and consistently. Repeated movement toward one side may indicate unequal tension, roller misalignment, guide contact, or dimensional mismatch.

The belt surface must provide suitable grip for stable PCB movement. Oil, dust, polishing, or chemical contamination may reduce effective traction.

A new belt cannot compensate for damaged, seized, or incorrectly aligned rollers. Rollers should rotate smoothly and remain free of contamination.

PCB transport performance is linked to machine sensors. A slipping belt may prevent the PCB from reaching a sensor position at the correct time, creating a transport alarm even when the sensor itself remains operational.

A small difference in width, thickness, or length may affect installation and working tension. This is why the nominal 1282.5 × 5.5 × 0.65 mm size should be confirmed carefully.

The requested replacement should correspond with N510061364AA. Avoid choosing a belt only because it looks similar. Many SMT conveyor belts have similar widths and appearances but differ in length, thickness, surface construction, and machine position.

Verify that the equipment is an NPM-W model and record the complete machine identification information. Machine configurations can differ according to production setup, installed options, revision, and conveyor arrangement.

The supplied nominal size is:

Do not confirm the order using width alone. A 5.5 mm belt with the wrong length or thickness may not install or operate correctly.

Provide a clear image showing where the belt is installed. Some machines contain multiple conveyor belts for different positions or transport sections. The position photo helps distinguish between visually similar products.

When possible, remove and inspect the existing belt. Record:

• Overall appearance.
• Printed or labeled part number.
• Width.
• Thickness.
• Approximate circumference or nominal length.
• Surface pattern.
• Edge construction.
• Joint condition, where applicable.
• Belt color.
• Installation direction, where relevant.

Before ordering, inspect the following components:

State whether your purchasing requirement is based on machine manufacturer supply, replacement supply, or another approved condition. The exact condition, packaging, inspection scope, warranty terms, and delivery schedule should be confirmed in the quotation.

For a critical production machine, ordering only one belt may leave the production line without an immediate spare after the next maintenance cycle. Consider the number of machines, belt replacement frequency, supplier lead time, and production criticality when deciding the quantity.

State whether the order is:

• An emergency machine repair.
• A planned maintenance purchase.
• A spare-stock replenishment.
• A new production-line preparation.
• A machine refurbishment project.

This information helps determine the most suitable shipping arrangement.

For faster confirmation, send the part number, dimensions, machine model, quantity, photos, destination, and required delivery date in the first inquiry.

1. Stop the machine according to the factory’s safety procedure.
2. Disconnect or isolate energy sources as required.
3. Record the original belt routing.
4. Photograph the existing installation.
5. Check the rollers and guides for damage.
6. Remove dust, residue, and loose particles.
7. Compare the replacement belt with the removed belt.
8. Confirm that the belt is not twisted.
9. Check that the rollers rotate freely.
10. Verify that the replacement dimensions are correct.

• Install the belt according to the original routing.
• Avoid using sharp tools directly against the belt.
• Do not force the belt over damaged roller edges.
• Keep the belt surface clean.
• Adjust tension gradually.
• Check that both sides are aligned.
• Rotate the conveyor manually where permitted.
• Confirm that the belt does not rub against nearby parts.
• Avoid excessive stretching during installation.
• Follow the machine maintenance procedure.

Check the belt regularly for:

• Cracks.
• Surface polishing.
• Edge wear.
• Stretching.
• Uneven tracking.
• Residue buildup.
• Loss of flexibility.
• Belt-to-guide contact.
• Abnormal vibration.
• Intermittent slipping.

Use a cleaning method suitable for the belt and machine environment. Avoid aggressive chemicals unless their compatibility has been confirmed. Apply cleaning material to a cloth rather than directly flooding the conveyor area.

Do not compensate for severe belt wear by continuously increasing tension. Excessive tension may create additional load on rollers, bearings, and the drive system. If the belt repeatedly loses tension, inspect it for elongation and confirm the tensioning mechanism.

Each belt should be checked according to the confirmed order requirements before shipment.

After receiving the shipment:

1. Check the package for transportation damage.
2. Confirm the delivered quantity.
3. Compare the label with the purchase order.
4. Inspect the belt surface and edges.
5. Verify the dimensions.
6. Compare the belt with the removed component.
7. Store it flat or in suitable protective packaging.
8. Avoid sharp bending, heavy pressure, heat, and chemical exposure.
9. Keep the product identified until installation.
10. Report any discrepancy before installation.

The belt should be protected against dust, moisture, deformation, sharp objects, and excessive compression during shipment.

• Machine-specific part number for efficient purchasing identification.
• Nominal 1282.5 × 5.5 × 0.65 mm dimensional reference.
• Intended for the PCB transport system of NPM-W equipment.
• Suitable for preventive maintenance and emergency replacement.
• Helps restore smooth and stable PCB movement.
• Easy to include in critical spare-parts inventory.
• Supports machine refurbishment and conveyor-system repair.
• Available for international SMT maintenance requirements.
• Order verification supported by machine and product photos.
• Professional inquiry handling for industrial customers.

The N510061364AA flat conveyor belt is intended for the PCB transport system of NPM-W pick-and-place equipment. Because conveyor configurations may vary, buyers should confirm the complete machine model, belt position, dimensions, and existing-part photographs before ordering.

The supplied nominal specification is 1282.5 mm in length, 5.5 mm in width, and 0.65 mm in thickness. The removed belt and machine documentation should be checked because a similar appearance does not guarantee the same length or installation position.

Send the part number, machine model, machine nameplate photo, existing-belt photos, installation-position photo, measured dimensions, and required quantity. Matching the part number, size, machine model, and physical installation position provides the most reliable confirmation.

Common symptoms include PCB slipping, inconsistent transfer speed, belt-edge wear, cracking, repeated tracking adjustment, abnormal conveyor noise, transport alarms, and visible surface polishing. Rollers, guides, sensors, bearings, and tension components should also be inspected.

Please provide N510061364AA as the required part number, the NPM-W machine model, 1282.5 × 5.5 × 0.65 mm dimensions, required quantity, supply-condition requirement, delivery destination, preferred shipping method, and expected delivery date.

For price, availability, condition, inspection details, packaging, delivery time, or technical matching, please send your inquiry with the following information:

• Part number: N510061364AA
• Product: NPM-W Conveyor Belt
• Size: 1282.5 × 5.5 × 0.65 mm
• Required quantity
• Machine model and serial information
• Existing-belt photographs
• Installation-position photograph
• Delivery destination
• Required delivery date

Send us your machine details and required quantity for accurate matching and a prompt quotation.
