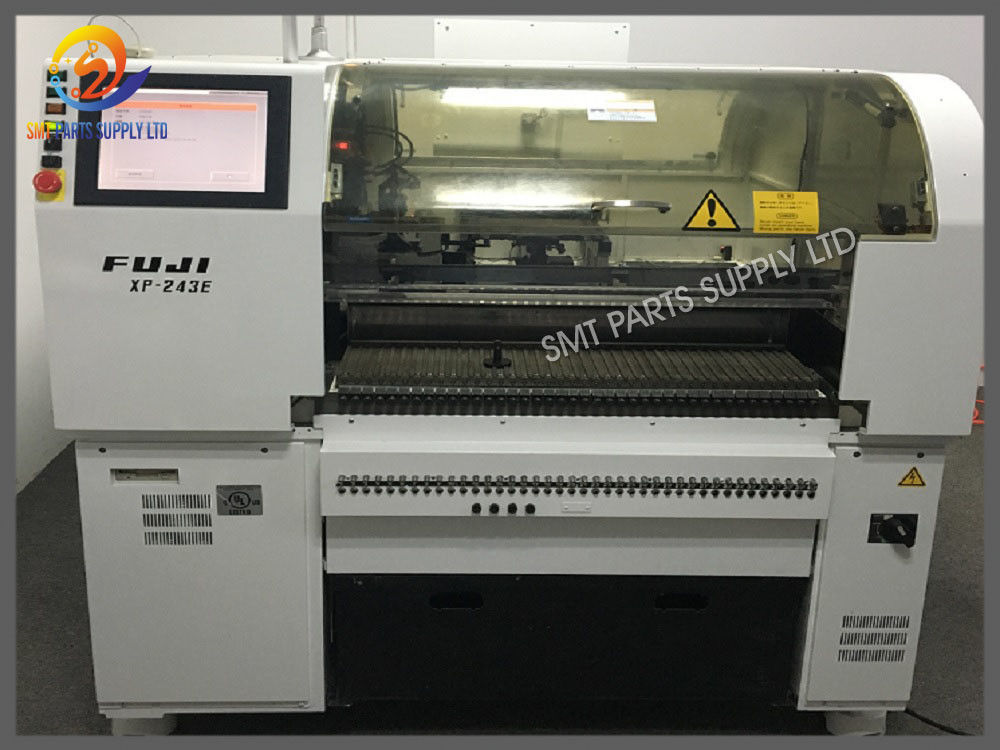

Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine

Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine
Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine

Large Image :  Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine

Product Details:
Place of Origin: JAPEN
Brand Name: FUJI
Model Number: FUJI XP243e
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union
Supply Ability: 1000PCS/YEAR

Used SMT Equipment FUJI XP243e Pick and Place Machine / Chip Shooter Machine

Description
PROPERTY: ORIGINAL USED WEIGHT: 2800KG
Brand: FUJI Material: Metal
Packing: Carton Lead Time: In Stock
High Light:

pick and place machine

,

solder paste mixer

Used SMT Equipment FUJI XP243e Pick and Place Machine Chip Shooter Machine Soldering Machine SMT Chip Mounter





Item Specifications

Object element
0603 ~ 45×150(□45)mm(High MAX25.4mm)
Mounting speed 0.43sec/pcs:8,37cph
0.56sec~/pcs:6,42cph
(QFP48pin:0.56sec,BGA225pin:0.74sec)
Mount accuracy Small chips, components, etc ±0.050mm cpk≥1.00,±0.066mm cpk≥1.33
QFP component ±0.040mm cpk≥1.00,±0.053mm cpk≥1.33
circuit board size MAX 457mm×356mm,MIN 50mm×50mm
thickness 0.5(0.3)~4.0mm±10%
weight 1kg below
Datum location Read time 0.3sec/pcs
Minimum read size φ0.2mm
The number of components that can be carried Front side (feeder): 40 according to 8mm material belt conversion
Rear side (material tray): 10, 10 / 20, 10
Component packaging JIS specifications, JEITA (old EIAJ) tape components, tube components, disk components
Strip:8,12,16,24,32,44,56,72,88mm
Tube:7≦Pipe width≦28mm,25≦Pipe width≦48mm
Material tray:138×330mm,276×330mm
Circuit board handling Flow direction Left→right(right→Left)
height 900mm(950mm)
Loading time 4.2sec (Circuit board sending→Board loading→Clamping of circuit board)
Up level system Fuji Flexa



 1. We Have stocks of feeders, nozzles, motors, servo, filters....etc. For The well-known brand like JUKI, Yamaha, Samsung, Siemens, Sanyo, Assembleon, Sony, FUJI, I-pulse...,
we support the original new &refurbished parts, and at the same time, we also support the OEM parts with competitive price with good quality.
2. We support repair service for PCB, motor, servo, valve ....etc., we do that to save your cost!
3. Buy and sell surplus SMT equipment, if you need any equipment, or need to sell your surplus equipment, just draw us an e-mail or call us now!
4. Software, including programing, Optimization...., much lower price than from Agent! You can try!
