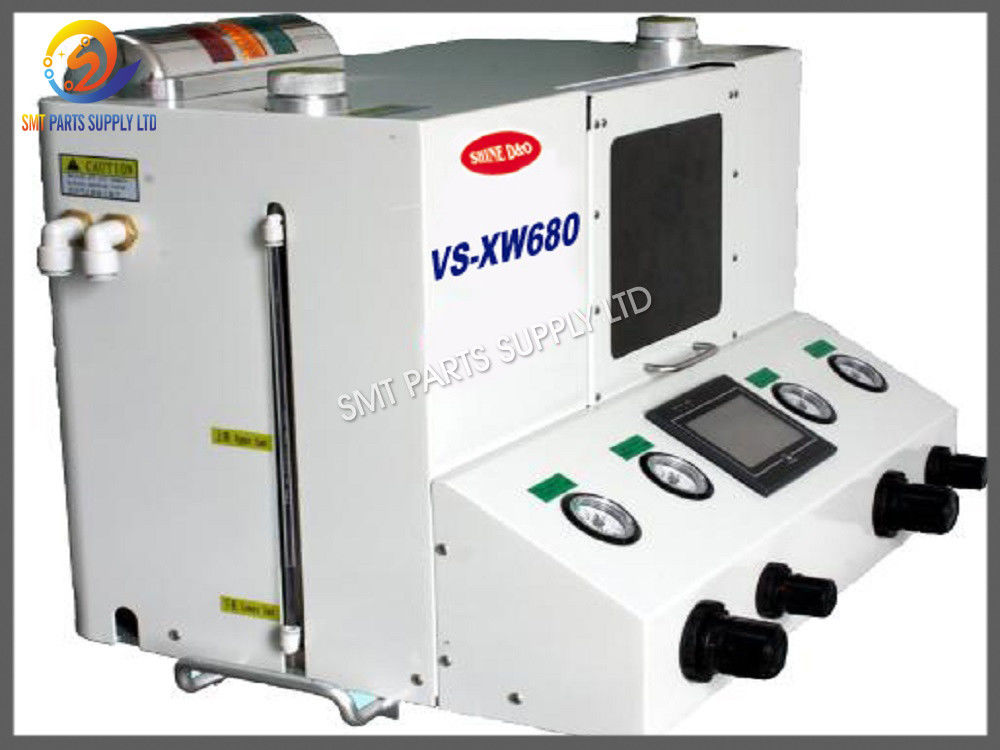

Original New SMT embly Equipment Automatic Nozzle Cleaning Machine

Original New SMT embly Equipment Automatic Nozzle Cleaning Machine
Original New SMT embly Equipment Automatic Nozzle Cleaning Machine

Large Image :  Original New SMT embly Equipment Automatic Nozzle Cleaning Machine

Product Details:
Place of Origin: CHINA
Brand Name: NONE
Model Number: SMT Automatic Nozzle Cleaning Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union
Supply Ability: 1000PCS/YEAR

Original New SMT embly Equipment Automatic Nozzle Cleaning Machine

Property: Original New Brand: NONE
Weight: 75KG Material: Metal
Lead Time: In Stock Packing: Carton
High Light:

pick and place machine


smt equipment

SMT Automatic Nozzle Cleaning Machine SMT embly Equipment


  • Product concept:

          Nozzle cleaning device adapted to new requirement of SMT. In the field of semiconductor industry, with the development of SMT, the minimization of components, the high density mounting and the miniaturization of base are possible. Moreover, the future development trend will be further miniaturization.
          In today's SMT industry, because the chip mount adsorption nozzle sticking with solder, flux etc. lead to frequent failures, bring great impact to the production, has become an urgent problem to be solved.


  • The difference between traditional cleaning methods:
Cleaning method mode shortcoming
Alcohol + wind gun Use soft cloth dipped in alcohol and then blow with a blower. The use of a large number of artificial, and can not clean the suction nozzle lumen, if the alcohol into the reflection board of glue, will cause the reflection plate fall off, fade.
Ultrasonic cleaning machine This is a widely used method, low cost, high efficiency, but the drawback is obvious, many SMT manufacturers banned this approach. The suction nozzles collide with each other, causing significant black coating damage to the surface. The penetration of the cleaning solution also results in the loss of the reflecting plate. It is difficult to remove the solder, flux and so on that are stuck on the nozzle surface and the adsorption hole, and completely clean.
  • Economic performance


1.reduce the purchase cost of suction nozzle, suction nozzle scrap, often due to too dirty, and therefore the occurrence of related accidents. After using this machine, we can solve the problem fundamentally. The original nozzle is expensive, mostly in more than 1000 yuan, long-term calculation, economic benefit is considerable.

2.the reduction of unnecessary artificial traditional cleaning methods requires a lot of manual processing, after using the XW680, then do not need special personnel, all handed to the machine to complete.

3. reduce the rate of bad products, suction mouth is not clean, suction is not strong, it is easy to cause the components of the sliding and throwing phenomenon, resulting in the improvement of product failure rate.

4. improve SMT production efficiency, the correct cleaning, so that suction nozzle to maintain a new state of work, to avoid identification of errors, greatly improve productivity.


  • Product technical parameters:

1. principle: unique mechanical design of M=1/2mv2, the water can be broken, produce very fine spray, at the speed of sound (V=360m/s) to the kinetic energy of the formation of a strong spray nozzle, nozzle to be cleaned above form a continuous field, crushing and internal surface of the dirt, without any solvent use industrial pure water and compressed air. scope: suction nozzle diameter of 0.033um-2.0mm agent: Industrial deionized water, no pollution to the environment, no damage to the suction nozzle.
4. cleaning efficiency: at most 12 can be cleaned every time. After setting and cleaning automatically, it saves labor.
5.applicable object: all mounter models.
6.gas consumption: less than 130Nl/min
7.pure water consumption: 1 liters /10 hours
8.other supplies: air filter replacement once a year
9.volume: 680 (L), *530 (W), *460 (H)
10.weight: 45KG
