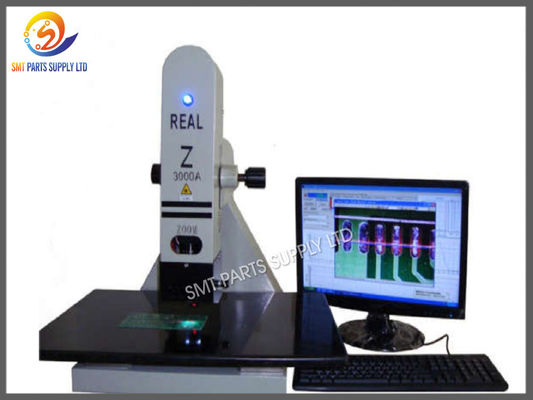

SMT Real Z 3000A 2D SPI Solder Paste Heig Solder paste thickness tester embly Equipment
Parameter:
| Measurement principle: | Relative method, grating ruler as the benchmark |
| Resolution: | 0.001 mm |
| Absolute accuracy: | ≤0.003％ |
| Repeatability accuracy: | ≤0.01％ |
| green copper and copper foil of Error compensation: | yes |
| Eliminate deformation error of PCB: | yes |
| Range: | 30 mm |
| Optical magnification: | 50 - 360X continuous stepless zoom |
| Field: | 10 x 7.5 - 1.2 x 0.8 mm adjust according to demand |
| Maximum size of PCB: | 400 x 600 mm |
| Minimum measurable element: | 0201, 01005, 0.2mm, fine pitch IC, BGA/CSP |
| Light color: | White, green, blue and turn off can be switched |
| Lighting life: | More than 1 million hours (LED power) |
| Laser wavelength and power: | 650nm, micropower <5mW |
| Laser lifetime: | 5-10 times longer than a laser without a standby function |
| Video output interfaceL: | USB |
| Video resolution: | 640 x 480 (can choose 1280x960) |
| Video total pixel: | 1 million 300 thousand pixels |
| Video type: | color image |
| Multiple line sharing: yes | yes |
| SPC statistical function: | Bad judgment, average value, standard deviation, Cpk, bad rate, distribution chart, trend chart, X, bar-R control chart, etc. |
| Power and power dissipation: | Through USB interface power supply, 2.5W small power consumption |
| Hot swap: | yes (Power failure without loss of measurement data) |
| Weight and size: | 60kg, W600 x D550 x H650 mm |
1. Allows the offset of the printing screen to the PCB at full scan
2. Color camera system, available to inspect different colors and lighting angles.
3. Excellent price / performance ratio
4. Low maintenance effort, because a closed system and no large mes must be moved
5. Low system costs and high system availability.
Project the precise laser into the object surface in 1 particular angle, because of the height difference between object surface and its base, the laser line will generate distance on object surface and its base. Capture the image with the optical system with microscope and digital CCD camera, and then analyze with computer software and then it can calculate the real height of the object.
Solder Paste height measurement
Area / Volume measurement.
PCB Printing, Solder Paste , Solder mask, Circuit height, paint height size and height measurement.
Geometry, X, Y size, Angle, Surface etc measurement.
Video Capture S.P.C Analysis.
