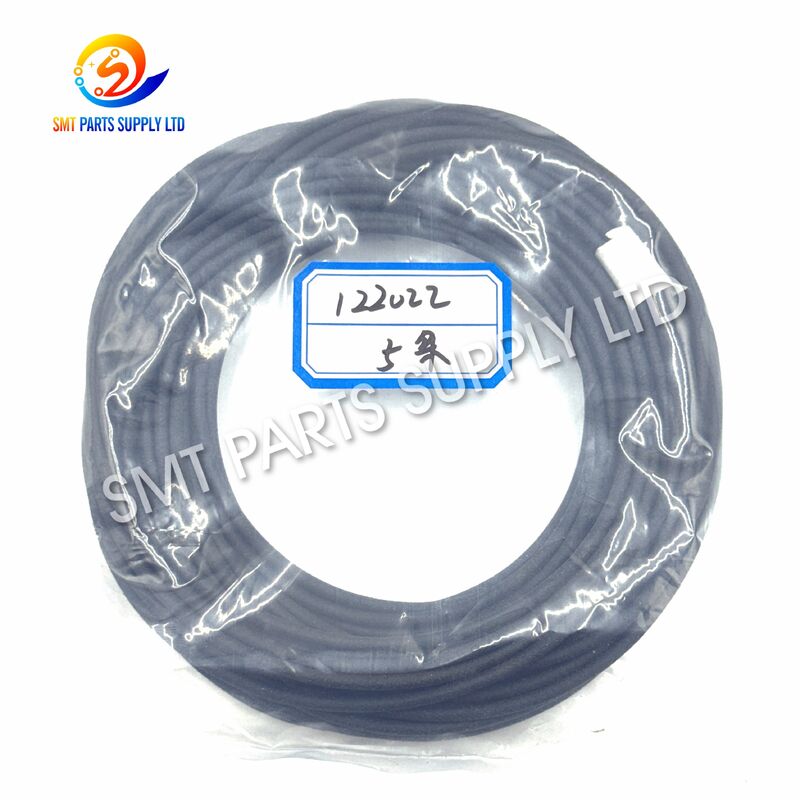

DEK 122022 3mm Round Conveyor Belt for 03IX Screen Printer

The DEK 122022 3mm Round Conveyor Belt is a specialized replacement part designed for DEK 03iX SMT screen printers. As a key component of the PCB conveyor system, the round belt provides smooth and stable board transportation during solder paste printing operations.

In SMT production lines, the conveyor mechanism plays an important role in transferring PCBs accurately between processes. Continuous operation, repeated movement and contact with production environments can gradually cause conveyor belts to wear, stretch or lose their original performance.

The DEK 122022 3mm Round Conveyor Belt helps restore reliable PCB movement and supports consistent printer operation. With proper installation and maintenance, it helps reduce transfer errors, improve machine stability and maintain efficient SMT production.

This conveyor belt is suitable for DEK 03iX screen printer maintenance applications and is commonly used by SMT factories, equipment service providers and machine refurbishment companies.

Cause

Conveyor belts are continuous-use mechanical components. During long-term SMT production, repeated movement and mechanical contact can gradually affect belt performance.

Common reasons for conveyor belt replacement include:

Typical Wear Factors

Long-Term Operation

SMT printers often operate continuously for many hours. The conveyor belt experiences repeated cycles during PCB loading and unloading.

Mechanical Friction

Contact between belt, rollers and conveyor components gradually creates surface wear.

Environmental Conditions

Dust, solder paste residue and production contamination may reduce belt service life.

Improper Tension

Incorrect belt tension can create excessive stress or insufficient driving force.

Solution

Replacing the DEK 122022 3mm Round Conveyor Belt provides a practical solution for restoring stable PCB transfer performance.

A new conveyor belt helps:

• Improve PCB transportation stability.
• Reduce belt slipping.
• Maintain smooth conveyor movement.
• Reduce unexpected machine downtime.
• Support consistent SMT printing quality.

Recommended Replacement Process

During replacement, technicians should also inspect:

• Conveyor rollers
• Belt guides
• Drive mechanism
• Tension adjustment parts
• PCB support components

Replacing related worn components together can improve overall conveyor reliability.

Specifications

Application Reference

Application

The DEK 122022 3mm Round Conveyor Belt is mainly used for SMT screen printer conveyor maintenance.

1. SMT Production Factory

PCB assembly factories rely on stable conveyor systems to maintain smooth printing processes. A reliable belt helps reduce production interruptions.

2. Screen Printer Maintenance

Equipment technicians replace worn conveyor belts during regular maintenance to restore machine performance.

3. Refurbished Machine Repair

Used DEK printers often require conveyor component replacement before returning to production service.

4. Spare Parts Inventory

Keeping conveyor belts in stock helps reduce repair waiting time and improves maintenance efficiency.

5. SMT Equipment Service Provider

Machine repair companies commonly maintain conveyor belts as frequently required replacement components.

How It Works

The DEK 122022 conveyor belt works as part of the printer PCB transportation system.

During SMT printing operation:

1. PCB enters the printer conveyor section.
2. Conveyor rollers drive the round belt movement.
3. The belt transfers PCB through the printing position.
4. The board is accurately positioned for solder paste printing.
5. After printing, the conveyor moves the PCB to the next process.

The belt must maintain stable movement because PCB positioning accuracy directly affects printing quality.

A worn or damaged belt may cause:

• PCB movement variation.
• Transfer delays.
• Positioning problems.
• Increased machine adjustment requirements.

A properly maintained conveyor belt supports reliable SMT production.

Advantages of Replacing DEK Conveyor Belt

How To Choose

Selecting the correct conveyor belt requires accurate machine information.

1. Confirm Part Number

Required part number:

DEK 122022

Always check the original machine spare part information before ordering.

2. Confirm Printer Model

Applicable equipment:

DEK 03iX Screen Printer

Different DEK printer models may use different conveyor components.

3. Check Belt Specification

Confirm:

• Belt type
• Diameter
• Length
• Installation position

4. Inspect Existing Belt

Compare:

5. Provide Machine Information

For faster confirmation, provide:

• Machine model
• Part number
• Belt photo
• Required quantity

Maintenance Recommendations

To extend conveyor belt service life:

• Clean belt surface regularly.
• Check belt tension periodically.
• Inspect rollers for wear.
• Remove solder paste contamination.
• Replace damaged belts promptly.
• Avoid excessive mechanical pressure.

Regular conveyor maintenance helps maintain stable PCB transfer and reduces unexpected downtime.

FAQ

1. What is DEK 122022 used for?

DEK 122022 is a 3mm round conveyor belt used in DEK 03iX screen printers for PCB transportation during SMT solder paste printing operations.

2. Which machine uses DEK 122022 conveyor belt?

This belt is mainly designed for DEK 03iX screen printer conveyor systems. Customers should confirm machine configuration before ordering.

3. When should the conveyor belt be replaced?

Replacement is recommended when the belt shows wear, stretching, slipping, abnormal movement or reduced PCB transfer stability.

4. Why is conveyor belt condition important in SMT printing?

Stable PCB transfer is essential for accurate solder paste printing. A worn belt may affect board positioning and production consistency.

5. What information is needed for quotation?

Please provide machine model, part number, quantity and belt photos if available for compatibility confirmation.

Contact Us

Need DEK 122022 3mm Round Conveyor Belt or other DEK screen printer spare parts?

Please send:

• Machine Model
• Part Number
• Required Quantity
• Product Photos

We provide SMT machine spare parts including conveyor belts, squeegee blades, motors, sensors, boards and other DEK printer components.

Contact us for quotation, availability and technical support.

Brand names and part numbers are used for identification and compatibility reference only.
