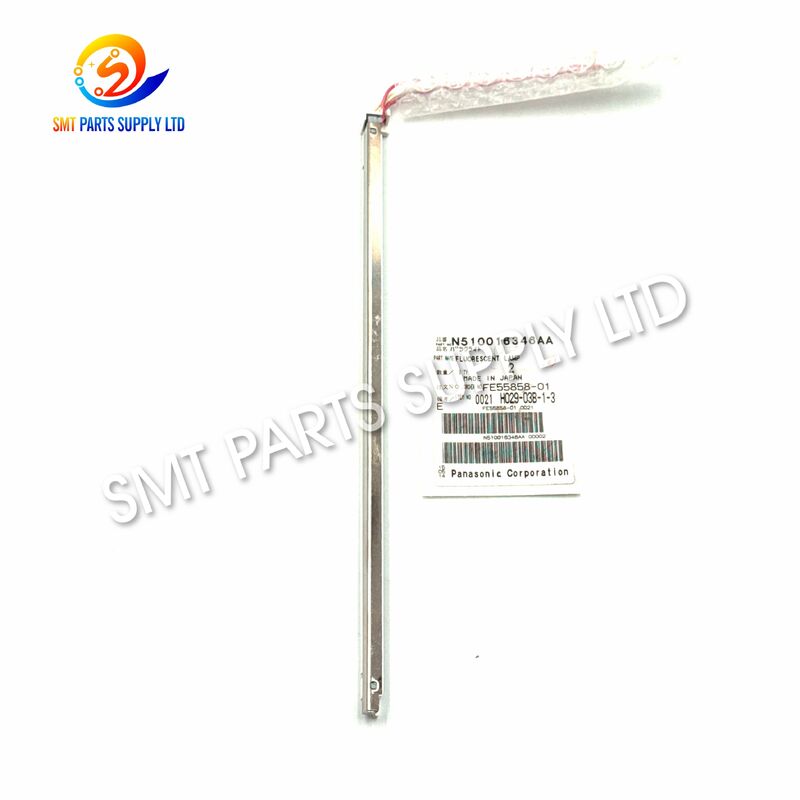

Panasonic N510016346AA Fluorescent Backlight Lamp for CM402 Pick and Place Machine

Panasonic N510016346AA Fluorescent Backlight Lamp for CM402 Pick and Place Machine

The Panasonic N510016346AA Fluorescent Backlight Lamp is an SMT machine spare part designed for use with the CM402 pick and place machine. The lamp provides backlight illumination required by related machine vision and recognition functions, helping the equipment obtain clear visual contrast during automated component handling and production.

Stable illumination is important in high-speed SMT assembly because machine vision systems depend on consistent lighting conditions to identify component profiles, positions, edges, and other visual features. When an existing backlight lamp becomes weak, unstable, damaged, or contaminated, recognition reliability may decline and machine performance may become inconsistent.

N510016346AA is therefore commonly used for CM402 maintenance, replacement, refurbishment, and preventive spare-parts inventory. It is suitable for SMT factories, EMS manufacturers, electronics assembly companies, maintenance departments, and SMT equipment service providers requiring a replacement lighting component for CM402 production equipment.

The backlight lamp is part of the machine's illumination system. During continuous SMT production, several conditions may gradually affect lighting performance.

After extended operating time, a fluorescent lamp may gradually become weaker. Reduced brightness can affect the contrast available to the machine vision system.

An aging lamp may produce inconsistent illumination across the working area. Uneven light can make image recognition less stable, especially when the equipment processes components with different shapes or reflective surfaces.

Electrical or physical failure may cause the lamp to stop operating completely. When the required backlight is unavailable, the related recognition process may not operate correctly.

Dust, flux residue, oil, or other production contamination can accumulate around illumination components and reduce effective light transmission.

Not every illumination problem is caused directly by the lamp. Loose connectors, damaged wiring, power supply problems, or related electrical components should also be inspected before replacement.

Correct diagnosis before replacement can reduce unnecessary downtime and prevent replacement of the wrong component.

When the CM402 backlight system shows reduced or unstable illumination, the lighting assembly should first be inspected carefully.

The recommended maintenance process is to verify:

• Machine model and installed part number.
• Condition of the fluorescent lamp.
• Lamp brightness and lighting uniformity.
• Electrical connectors and wiring.
• Related power supply components.
• Optical surfaces around the illumination area.
• Machine recognition performance before and after maintenance.

If the existing lamp is confirmed to be worn or damaged, replacing it with the correct N510016346AA backlight lamp can help restore normal illumination performance.

Using the correct replacement part is important because dimensions, connection interfaces, mounting design, and application position must correspond with the machine configuration.

Important: Exact machine configuration should always be checked by part number before ordering.

The N510016346AA fluorescent backlight lamp is mainly intended for CM402 SMT placement equipment.

It can be used by electronics manufacturers operating CM402 placement machines in high-volume PCB assembly environments.

Maintenance technicians may replace the lamp when illumination becomes weak, unstable, or unavailable.

Used CM402 machines often require inspection and replacement of aging electrical, mechanical, optical, and illumination components. N510016346AA can be included in a refurbishment program when the installed lamp requires replacement.

Factories operating multiple CM402 machines may keep selected lamps in spare-parts inventory to reduce production interruption when a lighting component fails.

Electronics manufacturing service companies operating multiple SMT lines can use the part as a maintenance component for compatible CM402 equipment.

The fluorescent backlight lamp supplies illumination from behind or beneath the relevant recognition area, depending on the CM402 machine configuration.

Unlike front lighting, backlighting can produce a stronger contrast between an object and its background. This makes component outlines, edges, openings, or profiles easier for a vision system to detect.

During normal machine operation, the recognition system captures image information and processes the visible features of the component or target. Stable lighting helps maintain consistent image quality.

The operating process can generally be understood as follows:

Lamp Activation → Backlight Illumination → Image Capture → Vision Processing → Position Recognition → Placement Process

When illumination becomes insufficient, the captured image may contain less contrast. This can increase recognition instability.

Replacing an aged lamp can therefore be an important part of maintaining the overall visual recognition environment.

Reliable illumination contributes to several areas of SMT machine operation.

The lamp itself does not determine the complete accuracy of the placement machine, because recognition performance also depends on cameras, optics, calibration, software settings, components, and machine condition. However, illumination remains an important supporting element of the vision system.

Before purchasing an N510016346AA replacement lamp, several factors should be checked.

Check the existing lamp, equipment documentation, maintenance manual, or spare-parts list.

The required part number should match:

N510016346AA

Part-number verification is more reliable than selecting a lamp only by appearance.

This product is intended for CM402 applications. Buyers should confirm the exact machine configuration before placing an order.

Compare:

If the backlight does not work, technicians should inspect the lamp together with the electrical connection and related circuitry.

Replacing the lamp without diagnosing the complete lighting system may not solve a wiring or power-related problem.

For faster confirmation, buyers can provide:

• Part number.
• Machine model.
• Machine configuration.
• Existing lamp photos.
• Connector photos.
• Required quantity.

This information helps reduce incorrect ordering.

To maintain reliable lighting performance, the illumination area should be inspected during routine machine maintenance.

Keep the lamp and surrounding optical area clean and avoid direct contact with sensitive surfaces during installation.

Before servicing the equipment, machine power should be switched off according to the manufacturer's maintenance procedures.

After replacement, technicians should check:

• Lamp operation.
• Illumination uniformity.
• Connector security.
• Machine recognition condition.
• Related alarms.
• Production test results.

A short verification run after maintenance is recommended before returning the equipment to normal production.

N510016346AA provides a clear part-number reference for purchasing and maintenance management.

Designed for use with CM402 equipment, making it easier for buyers to identify the intended machine application.

Suitable for scheduled maintenance, emergency replacement, or machine refurbishment.

Helps restore the illumination environment when the existing lamp has deteriorated.

Suitable for factories that want to keep critical CM402 lighting parts available to reduce repair waiting time.

Applicable to electronics factories, EMS companies, machine maintenance companies, and SMT spare-parts distributors serving Europe, North America, and Southeast Asia.

Accurate information at the inquiry stage allows faster compatibility confirmation and quotation preparation.

N510016346AA is a fluorescent backlight lamp intended for Panasonic CM402 pick and place machine applications. Confirm the installed part number and machine configuration before ordering.

The lamp provides backlight illumination for related machine vision and recognition functions. Stable illumination helps create sufficient visual contrast for consistent image processing during SMT machine operation.

Typical signs include weak illumination, unstable brightness, uneven lighting, lamp failure, or recognition problems associated with insufficient illumination. Wiring and related electrical components should also be checked before replacement.

Part-number confirmation is important, but providing the CM402 machine model and a photo of the existing lamp is recommended, especially when the equipment has different production versions or previous modifications.

Please provide N510016346AA, machine model CM402, required quantity, and photos of the existing component when available. This allows faster compatibility verification and quotation preparation.

For pricing, availability, quantity requirements, or compatibility confirmation of the N510016346AA Fluorescent Backlight Lamp for CM402, please send us the part number, machine model, required quantity, and product photos if available.

We support inquiries from SMT factories, electronics manufacturers, equipment maintenance companies, and spare-parts distributors. Bulk quantity requests and regular maintenance requirements are welcome.
